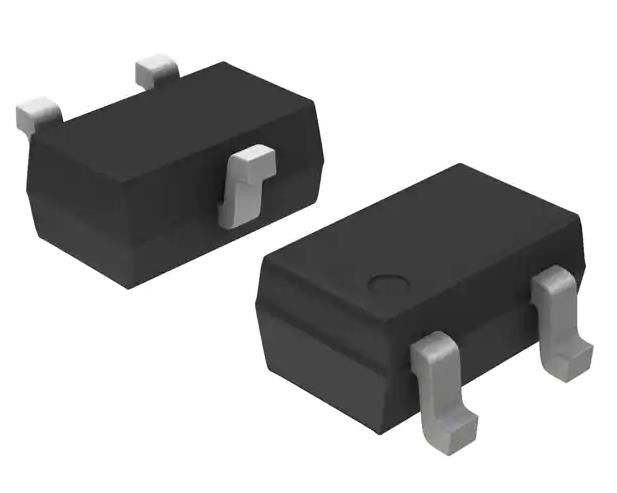

NTS4409NT1G N-Channel MOSFET 25 V 700mA (Ta) 280mW (Tj) Surface Mount SC-70-3 SOT323
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NTS4409NT1G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| FET Type: | N-Channel | Technology: | MOSFET (Metal Oxide) |
|---|---|---|---|
| Drain To Source Voltage (Vdss): | 25 V | Current - Continuous Drain (Id) @ 25°C: | 700mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On): | 2.7V, 4.5V | Rds On (Max) @ Id, Vgs: | 350mOhm @ 600mA, 4.5V |
| Vgs(th) (Max) @ Id: | 1.5V @ 250µA | Gate Charge (Qg) (Max) @ Vgs: | 1.5 NC @ 4.5 V |
| Vgs (Max): | ±8V | Input Capacitance (Ciss) (Max) @ Vds: | 60 PF @ 10 V |
| High Light: | NTS4409NT1G,NTS4409NT1G N-Channel MOSFET |
||
Product Description
NTS4409NT1G N-Channel 25 V 700mA (Ta) 280mW (Tj) Surface Mount SC-70-3 (SOT323)
MOSFET N-CH 25V 700MA SC70-3
Specifications of NTS4409NT1G
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Single FETs, MOSFETs | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 700mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.7V, 4.5V |
| Rds On (Max) @ Id, Vgs | 350mOhm @ 600mA, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 1.5 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 60 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 280mW (Tj) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-3 (SOT323) |
| Package / Case | SC-70, SOT-323 |
| Base Product Number | NTS4409 |
Features of NTS4409NT1G
• Advance Planar Technology for Fast Switching, Low RDS(on)
• Higher Efficiency Extending Battery Life
• AEC−Q101 Qualified and PPAP Capable − NVS4409N
• These Devices are Pb−Free and are RoHS Compliant
Specifications of NTS4409NT1G
• Boost and Buck Converter
• Load Switch
• Battery Protection
Environmental & Export Classifications of NTS4409NT1G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.21.0095 |
