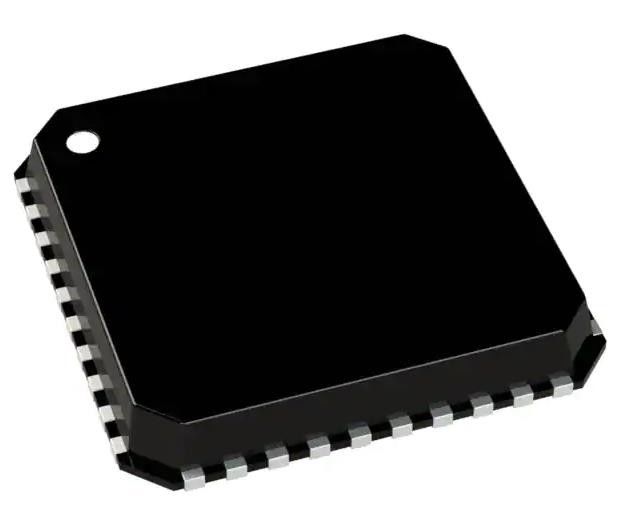

ADM1066ACPZ Supervisor IC Programmable 12 Channel 40-LFCSP-VQ (6x6)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADM1066ACPZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Sequencer | Number Of Voltages Monitored: | 12 |
|---|---|---|---|
| Voltage - Threshold: | Adjustable/Selectable | Output: | Programmable |
| Operating Temperature: | -40°C ~ 85°C (TA) | Supplier Device Package: | 40-LFCSP-VQ (6x6) |
| Highlight: | ADM1066ACPZ,ADM1066ACPZ Supervisor IC |
||
Product Description
ADM1066ACPZ Supervisor Programmable 12 Channel 40-LFCSP-VQ (6x6)
IC SUPERVISOR 12 CHANNEL 40LFCSP
Specifications of ADM1066ACPZ
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Supervisors | |
| Mfr | Analog Devices Inc. |
| Series | Super Sequencer® |
| Package | Tray |
| Product Status | Active |
| Type | Sequencer |
| Number of Voltages Monitored | 12 |
| Voltage - Threshold | Adjustable/Selectable |
| Output | Programmable |
| Reset | - |
| Reset Timeout | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 40-LFCSP-VQ (6x6) |
| Base Product Number | ADM1066 |
Features of ADM1066ACPZ
* Complete supervisory and sequencing solution for up to 10 supplies
* 10 supply fault detectors enable supervision of supplies to
- <0.5% accuracy at all voltages at 25°C
- <1.0% accuracy across all voltages and temperatures
* 5 selectable input attenuators allow supervision of supplies to 14.4 V on VH 6 V on VP1 to VP4 (VPx)
* 5 dual-function inputs, VX1 to VX5 (VXx) High impedance input to supply fault detector with thresholds between 0.573 V and 1.375 V General-purpose logic input
* 10 programmable driver outputs, PDO1 to PDO10 (PDOx) Open-collector with external pull-up Push/pull output, driven to VDDCAP or VPx Open collector with weak pull-up to VDDCAP or VPx Internally charge-pumped high drive for use with external N-FET (PDO1 to PDO6 only)
Applications of ADM1066ACPZ
* Central office systems
* Servers/routers
* Multivoltage system line cards
* DSP/FPGA supply sequencing
* In-circuit testing of margined supplies
Environmental & Export Classifications of ADM1066ACPZ
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
