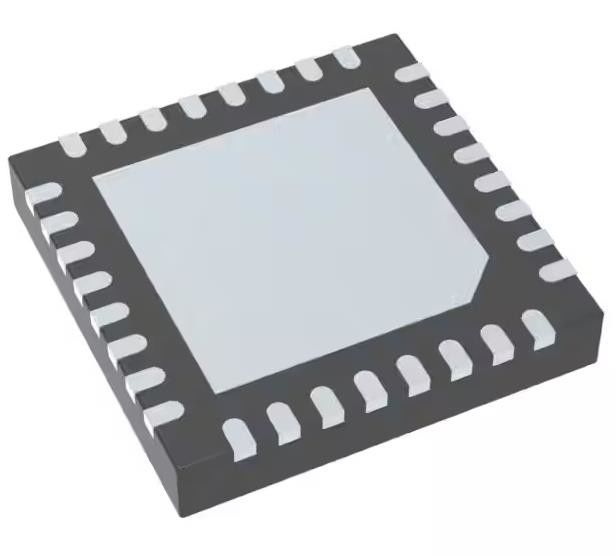

KSZ8051MNLU-TR Integrated Circuit Chip With 1/1 Transceiver Full MII 32-QFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | KSZ8051MNLU-TR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Transceiver | Protocol: | MII |
|---|---|---|---|
| Number Of Drivers/Receivers: | 1/1 | Duplex: | Full |
| Voltage - Supply: | 1.8V, 2.5V, 3.3V | Operating Temperature: | 0°C ~ 70°C |
Product Description
KSZ8051MNLU-TR Integrated Circuit Chip With 1/1 Transceiver Full MII 32-QFN
IC TRANSCEIVER FULL 1/1 32QFN
Specifications of KSZ8051MNLU-TR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Drivers, Receivers, Transceivers | |
| Mfr | Microchip Technology |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Transceiver |
| Protocol | MII |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Full |
| Data Rate | - |
| Voltage - Supply | 1.8V, 2.5V, 3.3V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
| Base Product Number | KSZ8051 |
Features of KSZ8051MNLU-TR
• Single-Chip 10BASE-T/100BASE-TX IEEE 802.3 Compliant Ethernet Transceiver
• AEC-Q100 Qualified for Automotive Applications
• MII Interface Support (KSZ8051MNL)
• RMII v1.2 Interface Support with a 50 MHz Reference Clock Output to MAC, and an Option to Input a 50 MHz Reference Clock (KSZ8051RNL)
• Back-to-Back Mode Support for a 100 Mbps Copper Repeater
• MDC/MDIO Management Interface for PHY Register Configuration
• Programmable Interrupt Output
• LED Outputs for Link, Activity, and Speed Status Indication
• On-Chip Termination Resistors for the Differential Pairs
• Baseline Wander Correction
• HP Auto MDI/MDI-X to Reliably Detect and Correct Straight-Through and Crossover Cable Connections with Disable and Enable Option
• Auto-Negotiation to Automatically Select the Highest Link-Up Speed (10/100 Mbps) and Duplex (Half/Full)
• Power-Down and Power-Saving Modes
• LinkMD® TDR-Based Cable Diagnostics to Identify Faulty Copper Cabling
• Parametric NAND Tree Support for Fault Detection Between Chip I/Os and the Board
• Loopback Modes for Diagnostics
• Single 3.3V Power Supply with VDD I/O Options for 1.8V, 2.5V, or 3.3V
• Built-In 1.2V Regulator for Core
• Available in 32-pin 5 mm x 5 mm QFN Package
Applications of KSZ8051MNLU-TR
• Automotive In-Vehicle Networking
Environmental & Export Classifications of KSZ8051MNLU-TR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991B1 |
| HTSUS | 8542.39.0001 |
