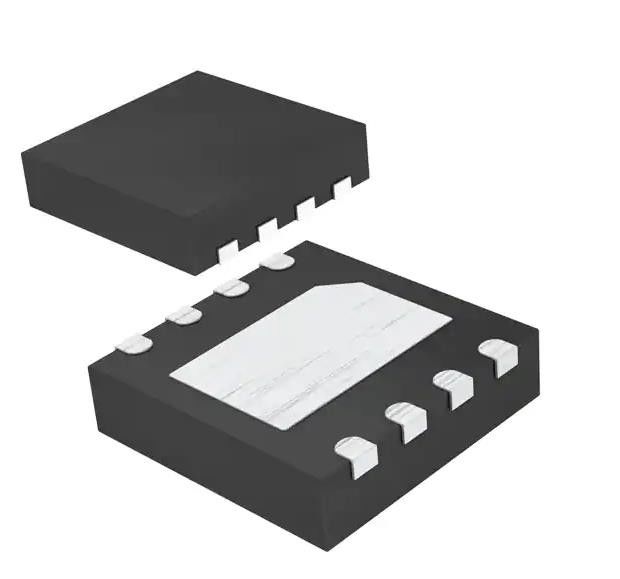

MAX5054BATA+T Gate Driver IC With 4V - 15V Inverting/Non Inverting 8-TDFN (3x3)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MAX5054BATA+T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Driven Configuration: | Low-Side | Channel Type: | Independent |
|---|---|---|---|
| Number Of Drivers: | 2 | Gate Type: | N-Channel MOSFET |
| Voltage - Supply: | 4V ~ 15V | Logic Voltage - VIL, VIH: | 0.8V, 2.1V |
| Current - Peak Output (Source, Sink): | 4A, 4A | Rise / Fall Time (Typ): | 32ns, 26ns |
| High Light: | MAX5054BATA+T,SMD Gate Driver IC,8-TDFN Gate Driver IC |
||
Product Description
MAX5054BATA+T Gate Driver IC With Inverting Non-Inverting 8-TDFN (3x3)
IC GATE DRVR LOW-SIDE 8TDFN
Specifications of MAX5054BATA+T
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Gate Drivers | |
| Mfr | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Not For New Designs |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4V ~ 15V |
| Logic Voltage - VIL, VIH | 0.8V, 2.1V |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Input Type | Inverting, Non-Inverting |
| Rise / Fall Time (Typ) | 32ns, 26ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-TDFN (3x3) |
| Base Product Number | MAX5054 |
Features of MAX5054BATA+T
♦ 4V to 15V Single Power Supply
♦ 4A Peak Source/Sink Drive Current
♦ 20ns (typ) Propagation Delay
♦ Matching Delay Between Inverting and Noninverting Inputs
♦ Matching Propagation Delay Between Two Channels
♦ VDD / 2 CMOS Logic Inputs (MAX5054AATA)
♦ TTL Logic Inputs (MAX5054B/MAX5055/MAX5056/MAX5057)
♦ 0.1 x VDD (CMOS) and 0.3V (TTL) Logic-Input Hysteresis
♦ Up to +18V Logic Inputs (Regardless of VDD Voltage)
♦ Low Input Capacitance: 2.5pF (typ)
♦ 40µA (typ) Quiescent Current
♦ -40°C to +125°C Operating Temperature Range
♦ 8-Pin TDFN and SO Packages
Applications of MAX5054BATA+T
* Power MOSFET Switching
* Motor Control
* Switch-Mode Power Supplies
* Power-Supply Modules
* DC-DC Converters
Environmental & Export Classifications of MAX5054BATA+T
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
