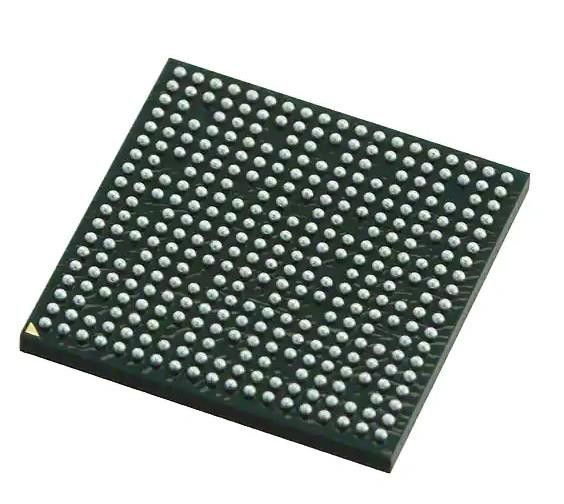

TMS320DM368ZCE Integrated Circuit Chip DSP With DGTL MEDIA SOC 338NFBGA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TMS320DM368ZCE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Series: | TMS320DM3x, DaVinci™ | Interface: | EBI/EMI, Ethernet, I²C, McBSP, SPI, UART, USB |
|---|---|---|---|
| Clock Rate: | 432MHz | Non-Volatile Memory: | ROM (16kB) |
| On-Chip RAM: | 56kB | Voltage - I/O: | 1.8V, 3.3V |
| Voltage - Core: | 1.35V | Operating Temperature: | 0°C ~ 85°C (TC) |
| High Light: | TMS320DM368ZCE,TMS320DM368ZCE Integrated Circuit Chip,DSP Integrated Circuit Chip |
||
Product Description
TMS320DM368ZCE Integrated Circuit Chip With DGTL MEDIA SOC 338NFBGA
IC CLOCK GENERATOR 16TSSOP
Specifications of TMS320DM368ZCE
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| DSP (Digital Signal Processors) | |
| Mfr | Texas Instruments |
| Series | TMS320DM3x, DaVinci™ |
| Package | Tray |
| Product Status | Active |
| Interface | EBI/EMI, Ethernet, I²C, McBSP, SPI, UART, USB |
| Clock Rate | 432MHz |
| Non-Volatile Memory | ROM (16kB) |
| On-Chip RAM | 56kB |
| Voltage - I/O | 1.8V, 3.3V |
| Voltage - Core | 1.35V |
| Operating Temperature | 0°C ~ 85°C (TC) |
| Mounting Type | Surface Mount |
| Package / Case | 338-LFBGA |
| Supplier Device Package | 338-BGA (13x13) |
| Base Product Number | TMS320 |
Features of TMS320DM368ZCE
* Highlights
- High-Performance Digital MediaSystem-on-Chip (DMSoC)
- 432-MHZ ARM926EJ-S Clock Rate
- Two Video lmage Co-processors(HDVICP, MJCP) Engines
- Supports a Range of Encode, Decode, andVideo Quality Operations
- Video Processing Subsystem
- HW Face Detect Engine
- Resize Engine from 1/16x to 8x
- 16-Bit Parallel AFE (Analog Front-End)Interface Up to 120 MHz
- 4:2:2 (8-/16-bit) Interface
- 8-/16-bit YCC and Up to 24-Bit RGB888Digital Output
- 3 DACs for HD Analog Video Output
- Hardware On-Screen Display (OSD)
- Capable of 1080p 30fps H.264 videoprocessing
- Peripherals include EMAC, USB 20 OTGDDR2/NAND,5 SPIS, 2 UARTS, 2MMC/SD/SDIO, Key Scan
- 8 Different Boot Modes and ConfigurablePower-Saving Modes
- Pin-to-pin and software compatible withDM365
- Extended temperature (-40°C - 85C)available
- 3.3-V and 1.8-V 1/0, 1.35-V Core
- 338-Pin Ball Grid Array at 65nm ProcessTechnology
Applications of TMS320DM368ZCE
Developers can now deliver crystal clear multi-format video at up to 1080p H.264 at 30fps (encode and closed-looped decode) in their digital video designs without concerns of video format support, constrained network bandwidth, limited system storage capacity or cost with the new TMS320DM368 DaVinci™ video processors from Texas Instruments Incorporated (TI).
Environmental & Export Classifications of TMS320DM368ZCE
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
