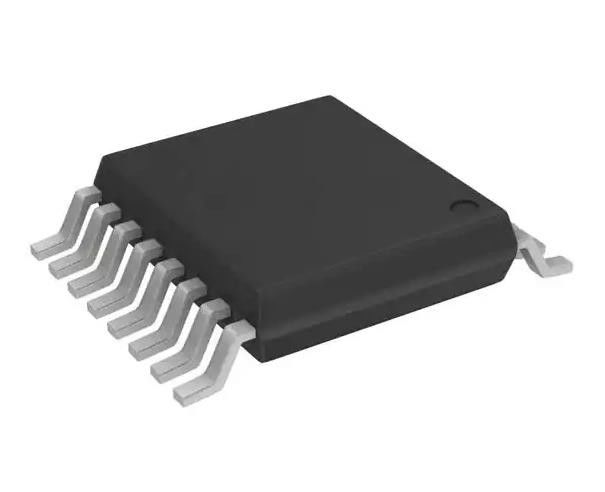

PI6C557-03AQLEX PCI Express Clock Timing IC With 200MHz 1 Output 16-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | PI6C557-03AQLEX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Main Purpose: | Ethernet, PCI Express (PCIe) | Input: | Clock, Crystal |
|---|---|---|---|
| Output: | HCSL, LVDS | Number Of Circuits: | 1 |
| Ratio - Input:Output: | 1:02 | Differential - Input:Output: | No/Yes |
| Frequency - Max: | 200MHz | Voltage - Supply: | 3V ~ 3.6V |
| High Light: | PI6C557-03AQLEX,PCI Express Clock Timing IC,200MHz Clock Timing IC |
||
Product Description
PI6C557-03AQLEX PCI Express Clock/Timing IC With 200MHz 1 Output 16-TSSOP
IC CLOCK GENERATOR 16TSSOP
Specifications of PI6C557-03AQLEX
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Application Specific Clock/Timing | |
| Mfr | Diodes Incorporated |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| PLL | Yes |
| Main Purpose | Ethernet, PCI Express (PCIe) |
| Input | Clock, Crystal |
| Output | HCSL, LVDS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:02 |
| Differential - Input:Output | No/Yes |
| Frequency - Max | 200MHz |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | PI6C557 |
Features of PI6C557-03AQLEX
* PCIe® 2.0 compliant
- Phase jitter - 2.1ps RMS (typ)
* LVDS compatible outputs
* Supply voltage of 3.3V ±10%
* 25MHz crystal or clock input frequency
* HCSL outputs, 0.8V Current mode differential pair
* Jitter 35ps cycle-to-cycle (typ)
* Spread of -0.5%, -0.75%, and no spread
* Spread Bypass option available
* Spread and frequency selection via external pins
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
Applications of PI6C557-03AQLEX
* Decoupling Capacitors
- Decoupling capacitors of 0.01μF should be connected between each VDD pin and the ground plane and placed as close to the VDD pin as possible.
* Crystal
-Use a 25MHz fundamental mode parallel resonant crystal with less than 300PPM of error across temperature.
Environmental & Export Classifications of PI6C557-03AQLEX
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
