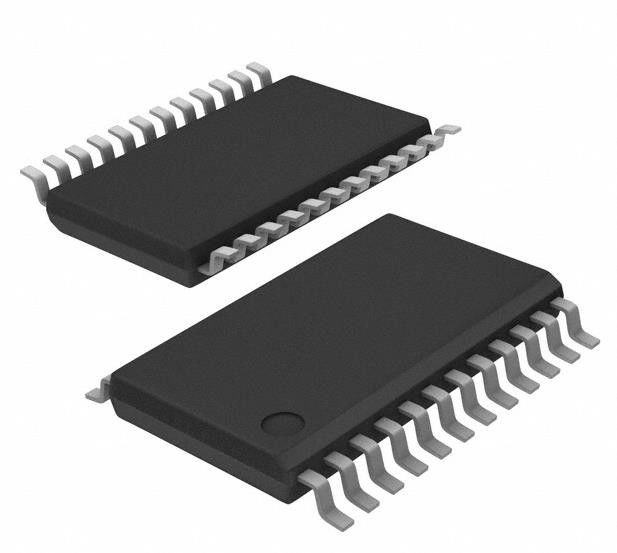

TS3A27518EPWR 6 Circuit Integrated Circuit Chip Analog Switch IC 24-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TS3A27518EPWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Multiplexer/Demultiplexer Circuit: | 2:01 | Number Of Circuits: | 6 |
|---|---|---|---|
| On-State Resistance (Max): | 6.2Ohm | Channel-to-Channel Matching (ΔRon): | 300mOhm |
| Voltage - Supply, Single (V+): | 1.65V ~ 3.6V | Switch Time (Ton, Toff) (Max): | 59ns, 60.6ns |
| -3db Bandwidth: | 240MHz | Charge Injection: | 0.81pC |
| Channel Capacitance (CS(off), CD(off)): | 13pF, 8.5pF | Current - Leakage (IS(off)) (Max): | 1µA |
| High Light: | TS3A27518EPWR,TS3A27518EPWR Integrated Circuit Chip,24-TSSOP Analog Switch IC |
||
Product Description
TS3A27518EPWR 6 Circuit Integrated Circuit Chip Switch 2:1 6.2Ohm 24-TSSOP
IC SWITCH SPDTX6 6.2OHM 24TSSOP
Specifications of TS3A27518EPWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Analog Switches, Multiplexers, Demultiplexers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:01 |
| Number of Circuits | 6 |
| On-State Resistance (Max) | 6.2Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 59ns, 60.6ns |
| -3db Bandwidth | 240MHz |
| Charge Injection | 0.81pC |
| Channel Capacitance (CS(off), CD(off)) | 13pF, 8.5pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Crosstalk | -62dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 24-TSSOP |
| Base Product Number | TS3A27518 |
Features of TS3A27518EPWR
• 1.65 V to 3.6 V single-supply operation
• Isolation in power-down mode, VCC = 0
• Low-capacitance switches, 21.5 pF (typical)
• Bandwidth up to 240 MHz for high-speed rail-to-rail signal handling
• Crosstalk and OFF isolation of –62 dB
• 1.8 V logic compatible control inputs
• 3.6 V tolerant control inputs
• Latch-up performance exceeds 100 mA per JESD 78, Class II
• ESD performance tested per JESD 22
– 2500-V human-body model (A114-B, Class II)
– 1500-V charged-device model (C101)
• ESD performance: NC/NO ports
– ±6-kV contact discharge (IEC 61000-4-2)
• 24-WQFN (4.00 mm × 4.00 mm) and 24-TSSOP (7.90 mm × 6.60 mm) packages
Applications of TS3A27518EPWR
• SD-SDIO and MMC two-port MUX
• PC VGA video MUX-video systems
• Audio and video signal routing
Environmental & Export Classifications of TS3A27518EPWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
