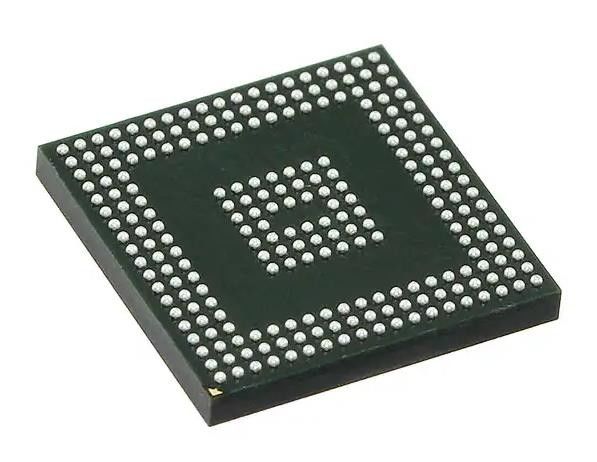

XA7A15T-1CPG236Q Field Programmable Gate Array IC With 106 921600 16640 238-LFBGA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | XA7A15T-1CPG236Q |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of LABs/CLBs: | 1300 | Number Of Logic Elements/Cells: | 16640 |
|---|---|---|---|
| Total RAM Bits: | 921600 | Number Of I/O: | 106 |
| Voltage - Supply: | 0.95V ~ 1.05V | Mounting Type: | Surface Mount |
| Operating Temperature: | -40°C ~ 125°C (TJ) | ||
| High Light: | XA7A15T-1CPG236Q,XA7A15T-1CPG236Q FPGA IC,238-LFBGA Field Programmable Gate Array IC |
||
Product Description
XA7A15T-1CPG236Q Field Programmable Gate Array IC With 106 921600 16640 238-LFBGA
IC FPGA 106 I/O 238CSBGA
Specifications of XA7A15T-1CPG236Q
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| FPGAs (Field Programmable Gate Array) | |
| Mfr | AMD |
| Series | Automotive, AEC-Q100, Artix-7 XA |
| Package | Bulk |
| Product Status | Active |
| Number of LABs/CLBs | 1300 |
| Number of Logic Elements/Cells | 16640 |
| Total RAM Bits | 921600 |
| Number of I/O | 106 |
| Voltage - Supply | 0.95V ~ 1.05V |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | 238-LFBGA, CSPBGA |
| Supplier Device Package | 238-CSBGA (10x10) |
| Base Product Number | XA7A15 |
Features of XA7A15T-1CPG236Q
• Automotive Temperatures:
• I-Grade: Tj= –40°C to +100°C
• Q-Grade: Tj= –40°C to +125°C
• Automotive Standards:
• ISO-TS16949 compliant
• AEC-Q100 qualification
• Production Part Approval Process (PPAP) documentation
• Beyond AEC-Q100 qualification is available upon request
• Advanced high-performance FPGA logic based on real 6-input lookup table (LUT) technology configurable as distributed memory
• 36 Kb dual-port block RAM with built-in FIFO logic for on-chip data buffering
• Sub-watt performance in 100,000 logic cells
• High-performance SelectIO™ technology with support for DDR3 interfaces up to 800 Mb/s
• High-speed serial connectivity with built-in serial transceivers from 500 Mb/s to maximum rates of 6.25 Gb/s,
enabling 50 Gb/s peak bandwidth (full duplex)
• A user configurable analog interface (XADC), incorporating dual 12-bit 1MSPS analog-to-digital converters
with on-chip thermal and supply sensors.
• Single-ended and differential I/O standards with speeds of up to 1.25 Gb/s
• 240 DSP48E1 slices with up to 264 GMACs of signal processing
• Powerful clock management tiles (CMT), combining phase-locked loop (PLL) and mixed-mode clock manager (MMCM) blocks
for high precision and low jitter
• Integrated block for PCI Express® (PCIe®), for up to x4 Gen2 Endpoint
• Wide variety of configuration options, including support for commodity memories, 256-bit AES encryption with HMAC/SHA-256 authentication, and built-in SEU detection and correction
• Low-cost wire-bond packaging, offering easy migration between family members in the same package, all packages available Pb-free
• Designed for high performance and lowest power with 28 nm,HKMG, HPL process, 1.0V core voltage process technology
• Strong automotive-specific third-party ecosystem with IP,development boards, and design services
Applications of XA7A15T-1CPG236Q
Xilinx® XA Artix®-7 (Automotive) FPGAs are optimized for the lowest cost and power with small form-factor packaging for high-volume automotive applications. Designers can leverage more logic per watt compared to the Spartan®-6 family.
Environmental & Export Classifications of XA7A15T-1CPG236Q
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
