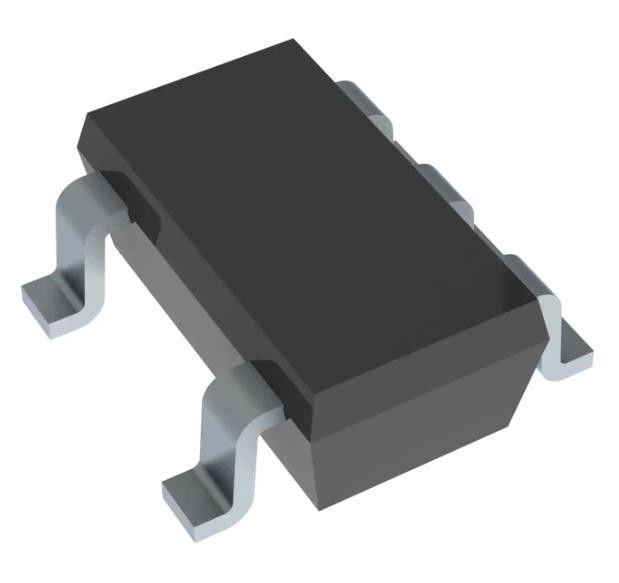

LMV321IDBVR General Purpose Amplifier With 1 Circuit Rail-To-Rail SOT-23-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMV321IDBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Amplifier Type: | General Purpose | Number Of Circuits: | 1 |
|---|---|---|---|
| Slew Rate: | 1V/µs | Gain Bandwidth Product: | 1 MHz |
| Current - Input Bias: | 15 NA | Current - Output: | 1.7 MV |
| Current - Supply: | 130µA | Current - Output / Channel: | 160 MA |
| Voltage - Supply Span (Min): | 2.7 MV | Voltage - Supply Span (Max): | 5.5 MV |
| High Light: | LMV321IDBVR,LMV321IDBVR Amplifier IC,Rail-To-Rail Amplifier IC |
||
Product Description
LMV321IDBVR General Purpose Amplifier With 1 Circuit Rail-to-Rail SOT-23-5
General Purpose Amplifier 1 Circuit Rail-to-Rail SOT-23-5
Specifications of LMV321IDBVR
| Category | Integrated Circuits (ICs) |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 1V/µs |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 15 nA |
| Voltage - Input Offset | 1.7 mV |
| Current - Supply | 130µA |
| Current - Output / Channel | 160 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | LMV321 |
Features of LMV321IDBVR
* 2.7-V and 5-V Performance
* -40°C to 125°C Operation
* Low-Power Shutdown Mode (LMV324S)
* No Crossover Distortion
* Low Supply Current
- LMV321: 130 uA Typ
- LMV358: 210 A Typ
- LMV324: 410 UA Typ
- LMV324S: 410 uA Typ
* Rail-to-Rail Output Swing
* ESD Protection Exceeds JESD
- 222000-V Human-Body Model
- 1000-V Charged-Device Model
Applications of LMV321IDBVR
* Desktop PCs
* HVAC: Heating, Ventilating, and Air Conditioning
* Motor Control: AC Induction
* Netbooks
* Portable Media Players
* Power: Telecom DC/DC Module: Digital
* Pro Audio Mixers
* Refrigerators
* Washing Machines: High-End and Low-End
Environmental & Export Classifications of LMV321IDBVR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
