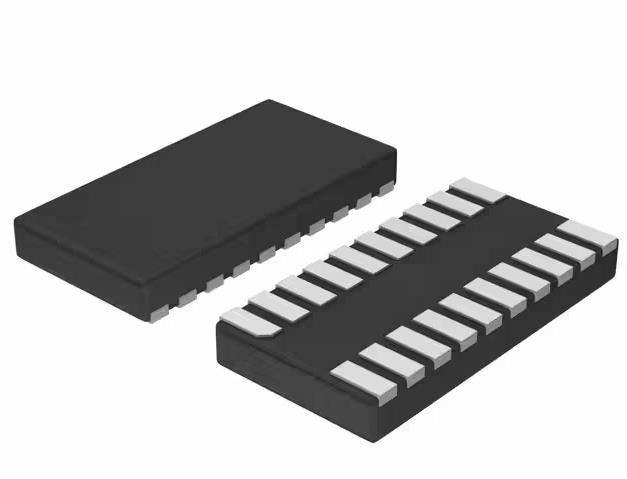

TXB0108DQSR Integrated Circuit Chip Translator Bidirectional 1 Circuit 8 Channel 100Mbps 20-USON
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TXB0108DQSR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Auto-Direction Sensing | Translator Type: | Voltage Level |
|---|---|---|---|
| Channel Type: | Bidirectional | Number Of Circuits: | 1 |
| Channels Per Circuit: | 8 | Voltage - VCCA: | 1.2 V ~ 3.6 V |
| Voltage - VCCB: | 1.65 V ~ 5.5 V | Operating Temperature: | -40°C ~ 85°C (TA) |
| High Light: | TXB0108DQSR Integrated Circuit Chip,Translator Bidirectional Integrated Circuit Chip |
||
Product Description
TXB0108DQSR Translator Bidirectional 1 Circuit 8 Channel 100Mbps 20-USON
IC TRANSLTR BIDIRECTIONAL 20USON
Specifications of TXB0108DQSR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Translators, Level Shifters | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Translator Type | Voltage Level |
| Channel Type | Bidirectional |
| Number of Circuits | 1 |
| Channels per Circuit | 8 |
| Voltage - VCCA | 1.2 V ~ 3.6 V |
| Voltage - VCCB | 1.65 V ~ 5.5 V |
| Input Signal | - |
| Output Signal | - |
| Output Type | Tri-State, Non-Inverted |
| Data Rate | 100Mbps |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Features | Auto-Direction Sensing |
| Mounting Type | Surface Mount |
| Package / Case | 20-UFDFN |
| Supplier Device Package | 20-USON (4x2) |
| Base Product Number | TXB0108 |
Features of TXB0108DQSR
• 1.2 V to 3.6 V on A Port and 1.65 V to 5.5 V on B Port (VCCA ≤ VCCB)
• VCC Isolation Feature – If Either VCC Input Is at GND, All Outputs Are in the High-Impedance State
• OE Input Circuit Referenced to VCCA
• Low Power Consumption, 4-μA Max ICC
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
– A Port
• 2000-V Human-Body Model (A114-B)
• 1000-V Charged-Device Model (C101)
– B Port
• ±15-kV Human-Body Model (A114-B)
• ±8-kV Human-Body Model (A114-B) (YZP Package Only)
• 1000-V Charged-Device Model (C101)
Applications of TXB0108DQSR
• Handset
• Smartphone
• Tablet
• Desktop PC
Environmental & Export Classifications of TXB0108DQSR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
