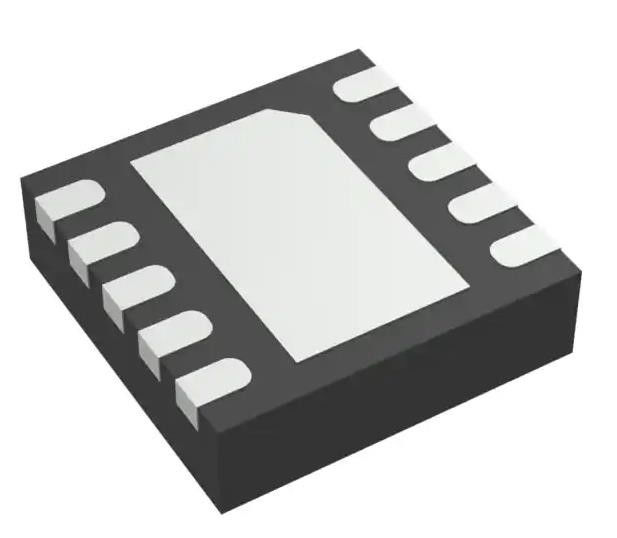

TPS51313DRCR Switching Regulator IC With Adjustable 0.6V 1 Output 3A 10-VFDFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS51313DRCR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Output Type: | Adjustable | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Input (Min): | 3.1V | Voltage - Input (Max): | 5.5V |
| Voltage - Output (Min/Fixed): | 0.6V | Voltage - Output (Max): | 3.3V |
| Current - Output: | 3A | Frequency - Switching: | 1MHz |
| Synchronous Rectifier: | Yes | Operating Temperature: | -10°C ~ 85°C (TA) |
| High Light: | TPS51313DRCR Switching Regulator IC,Switching Regulator IC Adjustable 0.6V |
||
Product Description
TPS51313DRCR Switching Regulator IC With Adjustable 0.6V 1 Output 3A 10-VFDFN
IC REG BUCK ADJUSTABLE 3A 10VSON
Specifications of TPS51313DRCR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | D-CAP2™ |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.1V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 3.3V |
| Current - Output | 3A |
| Frequency - Switching | 1MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -10°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-VSON (3x3) |
| Base Product Number | TPS51313 |
Features of TPS51313DRCR
* Input Voltage VIN Range : 3.1 V to 5.5 V
* Bias Voltage VCC Range: 3.1 V to 5.5 V
* Output Voltage Range: 0.6 V to 3.3 V
* 0.6-V, 1% Voltage Reference Accuracy
* Switching Frequency: 1 MHz
* No External Compensation is Required
* Fixed Voltage Servo Soft-Start Function
* Thermal Shutdown
Applications of TPS51313DRCR
• Discrete Graphics PCIe® PEX Rail
• Low-Voltage Point-of-Load (POL) Rails
Environmental & Export Classifications of TPS51313DRCR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
