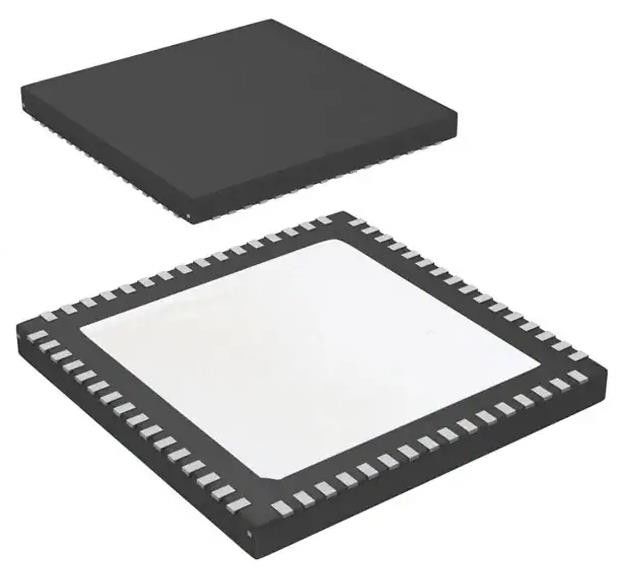

LMK04816BISQX/NOPB Integrated Circuit Chip With 2.6GHz 1 64-WFQFN Exposed Pad

Product Description

   LMK04816BISQX/NOPB Integrated Circuit Chip With 2.6GHz 1 64-WFQFN Exposed Pad

IC CLOCK DUAL PLL 64WQFN

Specifications of LMK04816BISQX/NOPB


Features of LMK04816BISQX/NOPB

• Ultralow RMS Jitter Performance
– 100-fs RMS Jitter (12 kHz to 20 MHz)
– 123-fs RMS Jitter (100 Hz to 20 MHz)
• Dual-Loop PLLATINUM™ PLL Architecture
– PLL1
– Integrated Low-Noise Crystal Oscillator Circuit
– Holdover Mode When Input Clocks are Lost
– Automatic or Manual Triggering and Recovery
– PLL2
– Normalized 1-Hz PLL Noise Floor of
–227 dBc/Hz
– Phase Detector Rate Up to 155 MHz
– OSCin Frequency-Doubler
– Integrated Low-Noise VCO
– VCO Frequency Ranges From 2370 MHz to 2600 MHz
• Three Redundant Input Clocks With LOS
– Automatic and Manual Switch-Over Modes
• 50% Duty Cycle Output Divides, 1 to 1045 (Even and Odd)
• LVPECL, LVDS, or LVCMOS Programmable Outputs
• Precision Digital Delay, Fixed or DynamicallyAdjustable
• 25-ps Step Analog Delay Control, Up to 575 ps
• 1/2 Clock Distribution Period Step Digital Delay, up to 522 Steps
• 13 Differential Outputs; up to 26 Single-Ended
– Up to 5 VCXO and Crystal-Buffered Outputs
• Clock Rates of Up to 2600 MHz
• 0-Delay Mode
• Three Default Clock Outputs at Power Up
• Multi-Mode: Dual PLL, Single PLL, and Clock Distribution
• Industrial Temperature Range: –40°C to +85°C
• 3.15-V to 3.45-V Operation
• Package: 64-Pin WQFN (9.0 × 9.0 × 0.8 mm)

Applications of LMK04816BISQX/NOPB

• Data Converter Clocking and Wireless Infrastructure
• Networking, SONET or SDH, DSLAM
• Medical, Video, Military, and Aerospace
• Test and Measurement

Environmental & Export Classifications of LMK04816BISQX/NOPB
