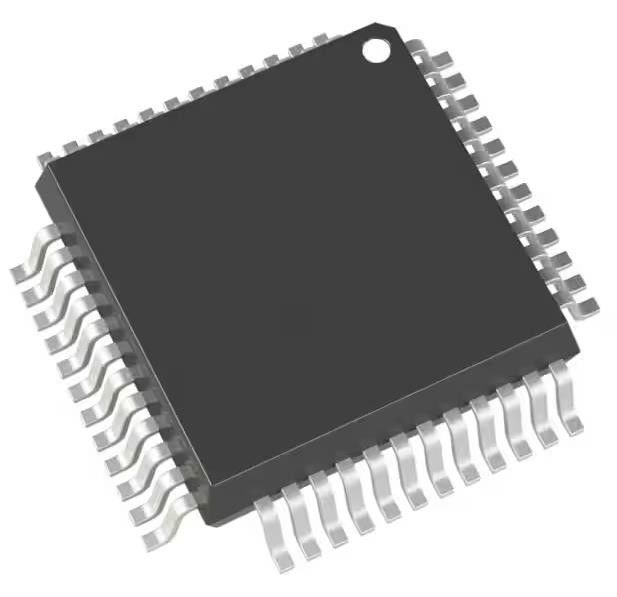

AD1953YSTZRL Integrated Circuit Chip With DAC/AUDIO 26BIT 48K 48LQFP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AD1953YSTZRL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | DAC, Audio | Number Of Channels: | 3 |
|---|---|---|---|
| Resolution (Bits): | 26 B | Sampling Rate (Per Second): | 48k |
| Data Interface: | DSD, PCM | Voltage - Supply: | 5V |
| Operating Temperature: | -40°C ~ 105°C | Package: | Tape & Reel (TR) |
| High Light: | AD1953YSTZRL Integrated Circuit Chip,48LQFP Integrated Circuit Chip |
||
Product Description
AD1953YSTZRL Integrated Circuit Chip With DAC/AUDIO 26BIT 48K 48LQFP
DAC, Audio 26 b 48k DSD, PCM 48-LQFP (7x7)
Specifications of AD1953YSTZRL
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| ADCs/DACs - Special Purpose | |
| Mfr | Analog Devices Inc. |
| Series | SigmaDSP® |
| Package | Tape & Reel (TR) |
| Product Status | Not For New Designs |
| Type | DAC, Audio |
| Number of Channels | 3 |
| Resolution (Bits) | 26 b |
| Sampling Rate (Per Second) | 48k |
| Data Interface | DSD, PCM |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 48-LQFP |
| Supplier Device Package | 48-LQFP (7x7) |
| Base Product Number | AD1953 |
Features of AD1953YSTZRL
* 5 V 3-Channel Audio DAC System
* Digital Audio Output (2-Channel or 6-Channel Packed Mode)
* Accepts Sample Rates up to 48 kHz
* 7 Biquad Filter Sections per Channel
* Dual Dynamic Processor with Arbitrary Input/Output Curve and Adjustable Time Constants
* 0 ms to 6 ms Variable Delay/Channel for Speaker Alignment
* Stereo Spreading Algorithm for Phat Stereo™ Effect
* Program RAM Allows Complete New Program Download via SPI Port
* Parameter RAM Allows Complete Control of More Than 200 Parameters via SPI Port
* SPI Port Features Safe-Upload Mode for Transparent Filter Updates
* 2 Control Registers Allow Complete Control of Modes and Memory Transfers
* Differential Output for Optimum Performance
* 112 dB Signal-to-Noise (Not Muted) at 48 kHz Sample Rate (A-Weighted Stereo)
* 70 dB Stop-Band Attenuation
* On-Chip Clickless Volume Control
* Hardware and Software Controllable Clickless Mute
* Digital De-emphasis Processing for 32 kHz, 44.1 kHz, 48 kHz Sample Rates
* Flexible Serial Data Port with Right-Justified, Left-Justified, I2S Compatible, and DSP Serial Port Modes
* Auxiliary Digital Input
* Graphical Custom Programming Tools
* 48-Lead LQFP Plastic Package
Applications of AD1953YSTZRL
* 2.0/2.1 Channel Audio Systems (2 Main Channels Plus Subwoofer)
* Multichannel Automotive Sound Systems
* Multimedia Audio
* Mini Component Stereo
* Home Theater Systems (AC-3 Postprocessor)
* Musical Instruments
* In-Seat Sound Systems (Aircraft, Motor Coaches)
Environmental & Export Classifications of AD1953YSTZRL
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
