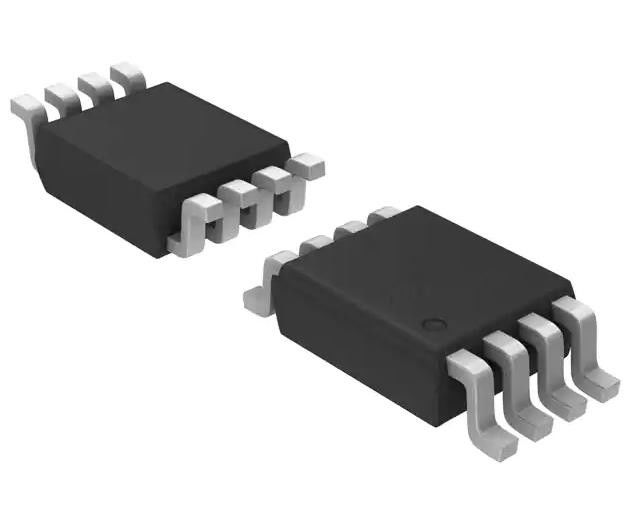

NLV17SZ74USG Flip Flop IC Chips 1 Element D-Type 1 Bit Positive Edge 8-VFSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NLV17SZ74USG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Schmitt Trigger | Number Of Circuits: | 2 |
|---|---|---|---|
| Number Of Inputs: | 2 | Voltage - Supply: | 1.65V ~ 5.5V |
| Current - Quiescent (Max): | 1 µA | Current - Output High, Low: | 32mA, 32mA |
| Input Logic Level - Low: | 0.2V ~ 1.2V | Input Logic Level - High: | 1.4V ~ 3.6V |
| Max Propagation Delay @ V, Max CL: | 4.9ns @ 5V, 50pF | Operating Temperature: | -40°C ~ 85°C |
| High Light: | NLV17SZ74USG Flip Flop IC Chips,8-VFSOP Flip Flop IC Chips |
||
Product Description
NLV17SZ74USG Flip Flop IC Chips 1 Element D-Type 1 Bit Positive Edge 8-VFSOP
IC FF D-TYPE SNGL 1BIT US8
Specifications of NLV17SZ74USG
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Flip Flops | |
| Mfr | onsemi |
| Series | Automotive, AEC-Q100, 17SZ |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Set(Preset) and Reset |
| Type | D-Type |
| Output Type | Complementary |
| Number of Elements | 1 |
| Number of Bits per Element | 1 |
| Clock Frequency | 200 MHz |
| Max Propagation Delay @ V, Max CL | 5ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 32mA, 32mA |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Iq) | 1 µA |
| Input Capacitance | 7 pF |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | US8 |
| Package / Case | 8-VFSOP (0.091", 2.30mm Width) |
| Base Product Number | 17SZ74 |
Features of NLV17SZ74USG
• Designed for 1.65 V to 5.5 V VCC Operation
• 2.6 ns tPD at VCC = 5 V (typ)
• Inputs/Outputs Overvoltage Tolerant up to 5.5 V
• IOFF Supports Partial Power Down Protection
• Source/Sink 24 mA at 3.0 V
• Available in US8, UDFN8 and UQFN8 Packages
• Chip Complexity < 100 FETs
• NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Descriptions of NLV17SZ74USG
The NC7WZ14 is a dual inverter w ith Schmitt trigger input from ON Semiconductor's Ultra-High Speed (UHS) Series of TinyLogic.
Environmental & Export Classifications of NLV17SZ74USG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
