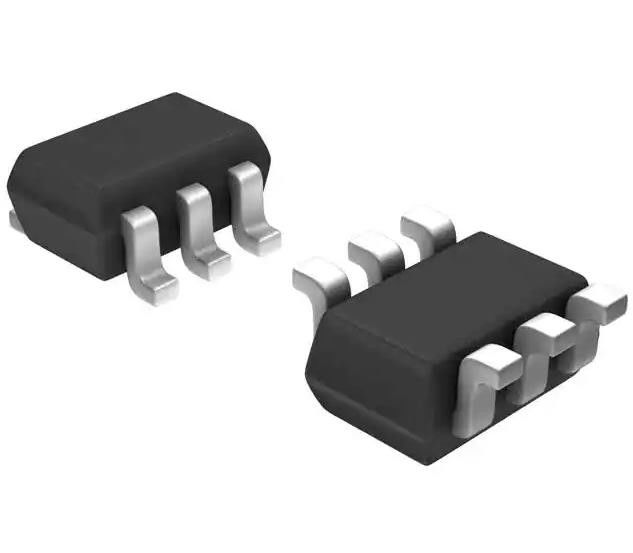

NC7WZ14P6X Inverter Integrated Circuit Chip With 2 Channel Schmitt Trigger SC-88
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NC7WZ14P6X |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Schmitt Trigger | Number Of Circuits: | 2 |
|---|---|---|---|
| Number Of Inputs: | 2 | Voltage - Supply: | 1.65V ~ 5.5V |
| Current - Quiescent (Max): | 1 µA | Current - Output High, Low: | 32mA, 32mA |
| Input Logic Level - Low: | 0.2V ~ 1.2V | Input Logic Level - High: | 1.4V ~ 3.6V |
| Max Propagation Delay @ V, Max CL: | 4.9ns @ 5V, 50pF | Operating Temperature: | -40°C ~ 85°C |
| High Light: | NC7WZ14P6X Inverter Integrated Circuit Chip,Integrated Circuit Chip SC-88 |
||
Product Description
NC7WZ14P6X Inverter Integrated Circuit Chip With 2 Channel Schmitt Trigger SC-88
INVERTER, LVC/LCX/Z SERIES, 2-FU
Specifications of NC7WZ14P6X
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Gates and Inverters | |
| Mfr | onsemi |
| Series | 7WZ |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Logic Type | Inverter |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 32mA, 32mA |
| Input Logic Level - Low | 0.2V ~ 1.2V |
| Input Logic Level - High | 1.4V ~ 3.6V |
| Max Propagation Delay @ V, Max CL | 4.9ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-88 (SC-70-6) |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Base Product Number | 7WZ14 |
Features of NC7WZ14P6X
* Ultra-High Speed: tPD 3.2ns (Typical) into 50pF at 5V VCC
* High Output Drive: ±24mA at 3V VCC
* Broad VCC Operating Range: 1.65V to 5.5V
* Matches Performance of LCX w hen Operated at 3.3V VCC
* Pow er Dow n High Impedance Inputs/Outputs
* Over-Voltage Tolerance Inputs Facilitate 5V to 3V Translation
* Proprietary Noise/EMI Reduction Circuitry
* Ultra-Small MicroPak™ Packages
* Space-Saving SC70 Package
Descriptions of NC7WZ14P6X
The NC7WZ14 is a dual inverter w ith Schmitt trigger input from ON Semiconductor's Ultra-High Speed (UHS) Series of TinyLogic.
