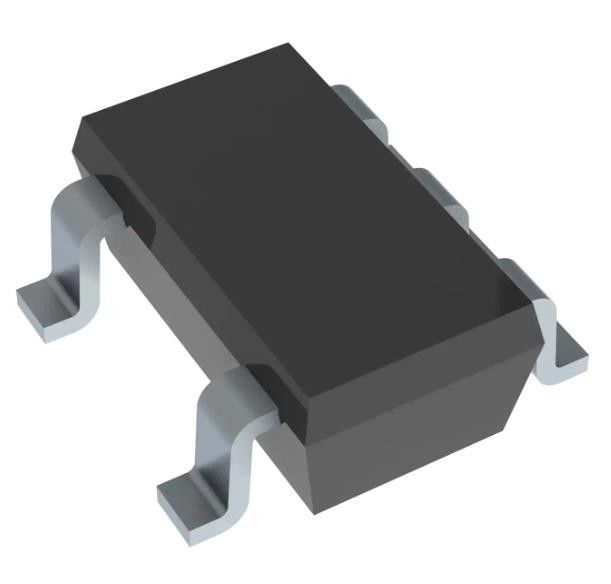

LMV7219M5/NOPB Comparator IC General Purpose Push Pull Rail To Rail SOT-23-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMV7219M5/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Elements: | 1 | Output Type: | Push-Pull, Rail-to-Rail |
|---|---|---|---|
| Voltage - Supply, Single/Dual (±): | 2.7V ~ 5V | Voltage - Input Offset (Max): | 6mV @ 5V |
| Current - Input Bias (Max): | 0.95µA @ 5V | Current - Quiescent (Max): | 1.8mA |
| CMRR, PSRR (Typ): | 85dB CMRR, 85dB PSRR | Propagation Delay (Max): | 20ns |
| Hysteresis: | 7.5mV | Operating Temperature: | -40°C ~ 85°C |
| High Light: | LMV7219M5/NOPB Comparator IC,Comparator IC SOT-23-5,Integrated Circuit Chip SOT-23-5 |
||
Product Description
LMV7219M5/NOPB Comparator IC General Purpose Push-Pull, Rail-to-Rail SOT-23-5
IC COMPARATOR 1 GEN PUR SOT23-5
Specifications of LMV7219M5/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Comparators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | General Purpose |
| Number of Elements | 1 |
| Output Type | Push-Pull, Rail-to-Rail |
| Voltage - Supply, Single/Dual (±) | 2.7V ~ 5V |
| Voltage - Input Offset (Max) | 6mV @ 5V |
| Current - Input Bias (Max) | 0.95µA @ 5V |
| Current - Output (Typ) | - |
| Current - Quiescent (Max) | 1.8mA |
| CMRR, PSRR (Typ) | 85dB CMRR, 85dB PSRR |
| Propagation Delay (Max) | 20ns |
| Hysteresis | 7.5mV |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | SC-74A, SOT-753 |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | LMV7219 |
Features of LMV7219M5/NOPB
• (VS = 5 V, TA = 25°C, Typical Values Unless Specified)
• Propagation Delay 7 ns
• Low Supply Current 1.1 mA
• Input Common Mode Voltage Range Extends 200 mv Below Ground
• Ideal for 2.7-V and 5-V Single Supply Applications
• Internal Hysteresis Ensures Clean Switching
• Fast Rise and Fall Time 1.3 ns
• Available in Space-saving Packages: SC-70 and SOT-23
• Supports 105°C PCB Temperature
Applications of LMV7219M5/NOPB
• Portable and Battery-powered Systems
• Scanners
• Set Top Boxes
• High Speed Differential Line Receiver
• Window Comparators
• Zero-crossing Detectors
• High-speed Sampling Circuits
Environmental & Export Classifications of SN74AUP2G14DRYR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
