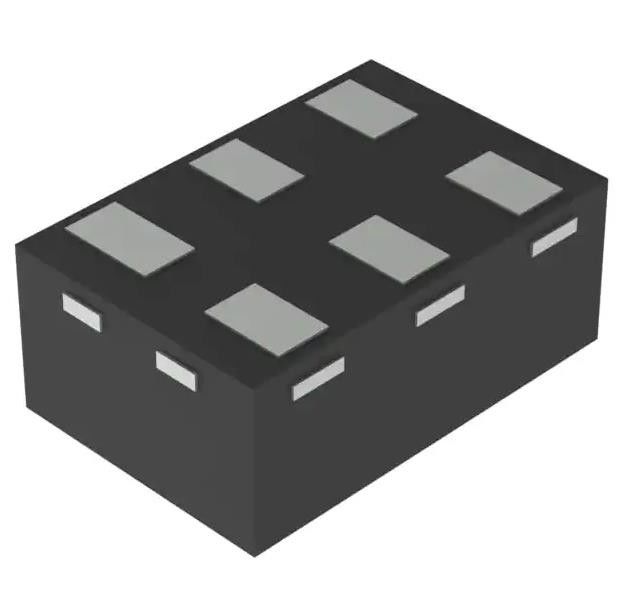

SN74AUP2G14DRYR Inverter IC 2 Channel Schmitt Trigger 6-SON 1.45x1
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74AUP2G14DRYR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Schmitt Trigger | Logic Type: | Inverter |
|---|---|---|---|
| Number Of Circuits: | 2 | Number Of Inputs: | 2 |
| Voltage - Supply: | 0.8V ~ 3.6V | Current - Quiescent (Max): | 500 NA |
| Current - Output High, Low: | 4mA, 4mA | Input Logic Level - Low: | 0.1V ~ 0.88V |
| Input Logic Level - High: | 0.6V ~ 2.29V | Max Propagation Delay @ V, Max CL: | 6.2ns @ 3.3V, 30pF |
| High Light: | SN74AUP2G14DRYR Inverter IC,2 Channel Schmitt Trigger Inverter IC,6-SON Integrated Circuit Chip |
||
Product Description
SN74AUP2G14DRYR Inverter IC 2 Channel Schmitt Trigger 6-SON (1.45x1)
IC INVERT SCHMITT 2CH 2-INP 6SON
Specifications of SN74AUP2G14DRYR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Gates and Inverters | |
| Mfr | Texas Instruments |
| Series | 74AUP |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 0.8V ~ 3.6V |
| Current - Quiescent (Max) | 500 nA |
| Current - Output High, Low | 4mA, 4mA |
| Input Logic Level - Low | 0.1V ~ 0.88V |
| Input Logic Level - High | 0.6V ~ 2.29V |
| Max Propagation Delay @ V, Max CL | 6.2ns @ 3.3V, 30pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-SON (1.45x1) |
| Package / Case | 6-UFDFN |
| Base Product Number | 74AUP2G14 |
Features of SN74AUP2G14DRYR
* Available in the Texas Instruments NanoStarTwPackage
* Low Static-Power Consumption(lcc = 0.9 A Maximum)
* Low Dynamic-Power Consumption(Cpd = 4.3 pF Typical at 3.3 V)
* Low Input Capacitance (C, = 1.5 pF Typical)
* Low Noise - Overshoot and Undershoot<10% of Vcc
* loff Supports Partial-Power-Down ModeOperation
* Wide Operating Vcc Range of 0.8 V to 3.6 V
Descriptions of SN74AUP2G14DRYR
The AUP family is TI's premier solution to the industry's low-power needs in battery-powered portable applications.
Environmental & Export Classifications of SN74AUP2G14DRYR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
