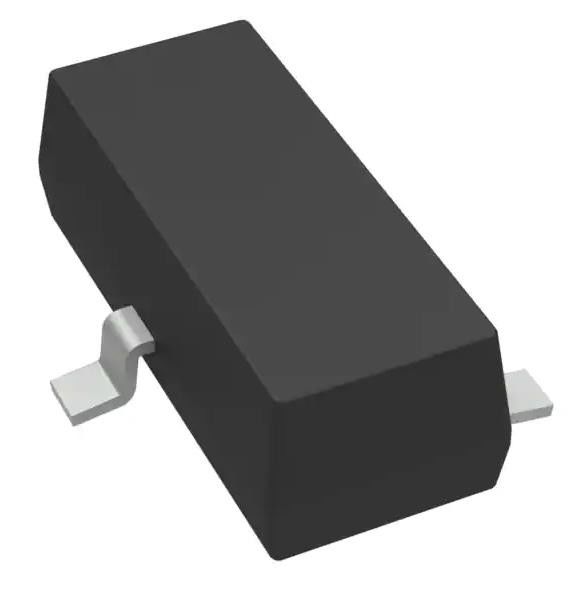

LM4041CIDBZR Voltage Reference IC With Adjustable 1.233V 10 VV ±0.5% 12 mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM4041CIDBZR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Adjustable | Voltage - Output (Min/Fixed): | 1.233V |
|---|---|---|---|
| Voltage - Output (Max): | 10 V | Current - Output: | 12 MA |
| Tolerance: | ±0.5% | Temperature Coefficient: | 100ppm/°C |
| Noise - 10Hz To 10kHz: | 20µVrms | Current - Cathode: | 80 µA |
| High Light: | LM4041CIDBZR Voltage Reference IC,Voltage Reference IC Adjustable 1.233V |
||
Product Description
LM4041CIDBZR Voltage Reference IC With Adjustable 1.233V 10 VV ±0.5% 12 mA
IC VREF SHUNT ADJ 0.5% SOT23-3
Specifications of LM4041CIDBZR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Voltage Reference | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Reference Type | Shunt |
| Output Type | Adjustable |
| Voltage - Output (Min/Fixed) | 1.233V |
| Voltage - Output (Max) | 10 V |
| Current - Output | 12 mA |
| Tolerance | ±0.5% |
| Temperature Coefficient | 100ppm/°C |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | 20µVrms |
| Voltage - Input | - |
| Current - Supply | - |
| Current - Cathode | 80 µA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | LM4041 |
Features of LM4041CIDBZR
• 1.225-V Fixed and Adjustable Outputs (1.225 V to 10 V)
• Tight Output Tolerances and Low Temperature Coefficient
– Max 0.1%, 100 ppm/°C – A Grade
– Max 0.2%, 100 ppm/°C – B Grade
– Max 0.5%, 100 ppm/°C – C Grade
– Max 1.0%, 150 ppm/°C – D Grade
• Low Output Noise . . . 20 μVRMS (Typ)
• Wide Operating Current Range . . . 45 μA (Typ) to 12 mA
• Stable With All Capacitive Loads; No Output Capacitor Required
• Available in
– Industrial Temperature: –40°C to 85°C
– Extended Temperature: –40°C to 125°C
Applications of LM4041CIDBZR
• Data-Acquisition Systems
• Power Supplies and Power-Supply Monitors
• Instrumentation and Test Equipment
• Process Control
• Precision Audio
• Automotive Electronics
• Energy Management/Metering
• Battery-Powered Equipment
Environmental & Export Classifications of LM4041CIDBZR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
