BGS8M2 RF Amplifier Integrated Circuit Chip 1.8GHz ~ 2.2GHz 6-XSON 1.1x0.7
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | HEF4013BTT,118 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Frequency: | 1.8GHz ~ 2.2GHz | Gain: | 14.4dB |
|---|---|---|---|
| Noise Figure: | 0.85dB | Voltage - Supply: | 1.5V ~ 3.1V |
| Current - Supply: | 5.8mA | Test Frequency: | 2.2GHz |
| High Light: | BGS8M2 RF Amplifier Integrated Circuit Chip,2.2GHz Integrated Circuit Chip |
||
Product Description

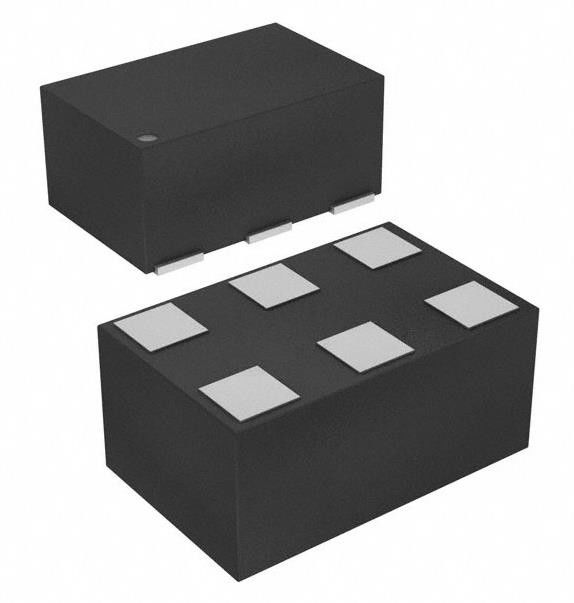

BGS8M2 RF Amplifier Integrated Circuit Chip 1.8GHz ~ 2.2GHz 6-XSON (1.1x0.7)
BGS8M2 IC RF AMP 1.8GHZ-2.2GHZ 6XSON
Specifications of BGS8M2/BGS8M2X
| TYPE | DESCRIPTION |
| Category | RF and Wireless |
| RF Amplifiers | |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Frequency | 1.8GHz ~ 2.2GHz |
| P1dB | - |
| Gain | 14.4dB |
| Noise Figure | 0.85dB |
| RF Type | - |
| Voltage - Supply | 1.5V ~ 3.1V |
| Current - Supply | 5.8mA |
| Test Frequency | 2.2GHz |
| Mounting Type | Surface Mount |
| Package / Case | 6-XFDFN |
| Supplier Device Package | 6-XSON (1.1x0.7) |
| Base Product Number | BGS8M2 |
Features of BGS8M2/BGS8M2X
• Operating frequency from 1805 MHz to 2200 MHz
• Noise figure = 0.85 dB
• Gain 14.4 dB
• High input 1 dB compression point of -3.5 dBm
• Bypass switch insertion loss of 2.2 dB
• High in band IP3i of 3.5 dBm
• Supply voltage 1.5 V to 3.1 V
• Self-shielding package concept
• Integrated supply decoupling capacitor
• Optimized performance at a supply current of 5.8 mA
• Power-down mode current consumption < 1 µA
• Integrated temperature stabilized bias for easy design
• Require only one input matching inductor
• Input and output DC decoupled
• ESD protection on all pins (HBM > 2 kV)
• Integrated matching for the output
• Available in 6-pins leadless package 1.1 mm x 0.7 mm x 0.37 mm; 0.4 mm pitch:SOT1232
• 180 GHz transit frequency - SiGe:C technology
• Moisture sensitivity level 1
Applications of BGS8M2/BGS8M2X
• LNA for LTE reception in smart phones
• Feature phones
• Tablet PCs
• RF front-end modules
Environmental & Export Classifications of BGS8M2/BGS8M2X
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
