HEF4013BTT 118 Integrated Circuit Chip Flip Flop 2 Element D Type 1 Bit 14-TSSOP 0.173" 4.40mm Width
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | HEF4013BTT,118 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Series: | 4000B | Number Of Elements: | 2 |
|---|---|---|---|
| Number Of Bits Per Element: | 1 | Clock Frequency: | 40 MHz |
| Max Propagation Delay @ V, Max CL: | 60ns @ 15V, 50pF | Trigger Type: | Positive Edge |
| Current - Output High, Low: | 3.4mA, 3.4mA | Voltage - Supply: | 3V ~ 15V |
| Current - Quiescent (Iq): | 4 µA | Input Capacitance: | 7.5 PF |
| High Light: | HEF4013BTT 118 Integrated Circuit Chip,Integrated Circuit Chip D Type |
||
Product Description

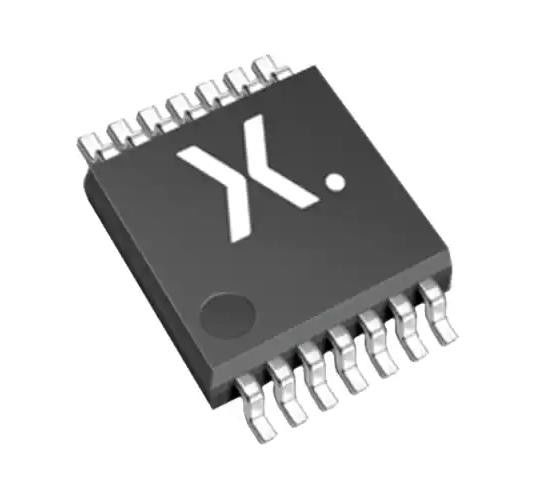

HEF4013BTT,118 Flip Flop 2 Element D-Type 1 Bit 14-TSSOP (0.173", 4.40mm Width)
HEF4013BTT,118 IC FF D-TYPE DUAL 1BIT 14TSSOP
Specifications of HEF4013BTT,118
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Flip Flops | |
| Mfr | Nexperia USA Inc. |
| Series | 4000B |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Set(Preset) and Reset |
| Type | D-Type |
| Output Type | Complementary |
| Number of Elements | 2 |
| Number of Bits per Element | 1 |
| Clock Frequency | 40 MHz |
| Max Propagation Delay @ V, Max CL | 60ns @ 15V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 3.4mA, 3.4mA |
| Voltage - Supply | 3V ~ 15V |
| Current - Quiescent (Iq) | 4 µA |
| Input Capacitance | 7.5 pF |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TSSOP |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Base Product Number | HEF4013 |
Features of HEF4013BTT,118
• Wide supply voltage range from 3.0 V to 15.0 V
• CMOS low power dissipation
• High noise immunity
• Tolerant of slow clock rise and fall times
• Fully static operation
• 5 V, 10 V, and 15 V parametric ratings
• Standardized symmetrical output characteristics
• Specified from -40 °C to +125 °C
• Complies with JEDEC standard JESD 13-B
• ESD protection:
• HBM JESD22-A114F exceeds 2000 V
• MM JESD22-A115-B exceeds 200 V
Applications of HEF4013BTT,118
• Counters and dividers
• Registers
• Toggle flip-flops
Environmental & Export Classifications of HEF4013BTT,118
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
