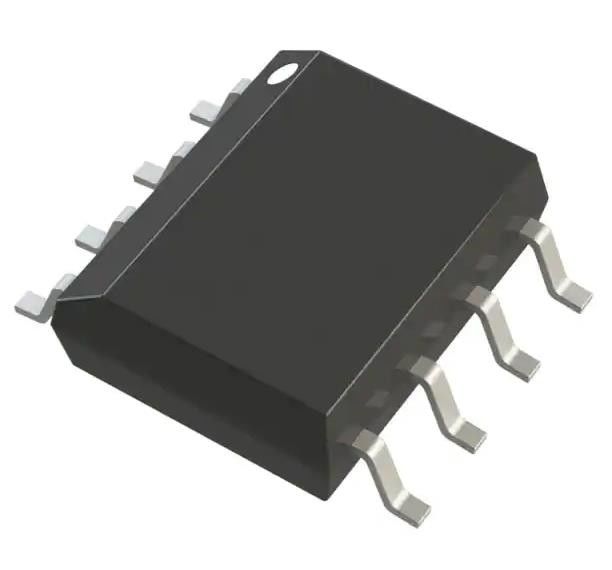

AD620ARZ Integrated Circuit Chip Instrumentation Amplifier 1 Circuit 8-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AD620ARZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Circuits: | 1 | Slew Rate: | 1.2V/µs |
|---|---|---|---|
| -3db Bandwidth: | 1 MHz | Current - Input Bias: | 500 PA |
| Voltage - Input Offset: | 30 µV | Current - Supply: | 900µA |
| Current - Output / Channel: | 18 MA | Voltage - Supply Span (Min): | 4.6 V |
| Voltage - Supply Span (Max): | 36 V | Operating Temperature: | -40°C ~ 85°C |
| High Light: | AD620ARZ Integrated Circuit Chip,Integrated Circuit Chip 8-SOIC |
||
Product Description
AD620ARZ Integrated Circuit Chip Instrumentation Amplifier 1 Circuit 8-SOIC
IC INST AMP 1 CIRCUIT 8SOIC
Specifications of AD620ARZ
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Amplifier Type | Instrumentation |
| Number of Circuits | 1 |
| Output Type | - |
| Slew Rate | 1.2V/µs |
| -3db Bandwidth | 1 MHz |
| Current - Input Bias | 500 pA |
| Voltage - Input Offset | 30 µV |
| Current - Supply | 900µA |
| Current - Output / Channel | 18 mA |
| Voltage - Supply Span (Min) | 4.6 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | AD620 |
Features of AD620ARZ
* Easy to use
- Gain set with one external resistor (Gain range 1 to 10,000)
- Wide power supply range (±2.3 V to ±18 V)
- Higher performance than 3 op amp IA designs
- Available in 8-lead DIP and SOIC packaging
- Low power, 1.3 mA max supply current
* Excellent dc performance (B grade)
- 50 μV max, input offset voltage
- 0.6 μV/°C max, input offset drift
- 1.0 nA max, input bias current
- 100 dB min common-mode rejection ratio (G = 10)
* Low noise
- 9 nV/√Hz @ 1 kHz, input voltage noise
- 0.28 μV p-p noise (0.1 Hz to 10 Hz)
* Excellent ac specifications
- 120 kHz bandwidth (G = 100)
- 15 μs settling time to 0.01%
Applications of AD620ARZ
* Weigh scales
* ECG and medical instrumentation
* Transducer interface
* Data acquisition systems
* Industrial process controls
* Battery-powered and portable equipment
Environmental & Export Classifications of AD620ARZ
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
