AAT3176AIDH-T1 LED Driver IC 1 Output DC Regulator Switched Capacitor 500mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AAT3176AIDH-T1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Voltage - Supply (Min): | 2.7V |
|---|---|---|---|
| Voltage - Supply (Max): | 5.5V | Voltage - Output: | 5.5V |
| Current - Output / Channel: | 500mA (Flash) | Frequency: | 1MHz |
| Applications: | Camera Flash | Operating Temperature: | -40°C ~ 85°C (TA) |
| High Light: | AAT3176AIDH-T1 LED Driver IC,500mA LED Driver IC |
||
Product Description
AAT3176AIDH-T1 LED Driver IC 1 Output DC Regulator Switched Capacitor 500mA
MSP430F2481TRGCR IC MCU 16BIT 48KB FLASH 64VQFN
Specifications of AAT3176AIDH-T1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| LED Drivers | |
| Mfr | Skyworks Solutions Inc. |
| Series | - |
| Package |
Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Obsolete |
| Type | DC DC Regulator |
| Topology | Switched Capacitor (Charge Pump) |
| Internal Switch(s) | No |
| Number of Outputs | 1 |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | 5.5V |
| Current - Output / Channel | 500mA (Flash) |
| Frequency | 1MHz |
| Dimming | - |
| Applications | Camera Flash |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

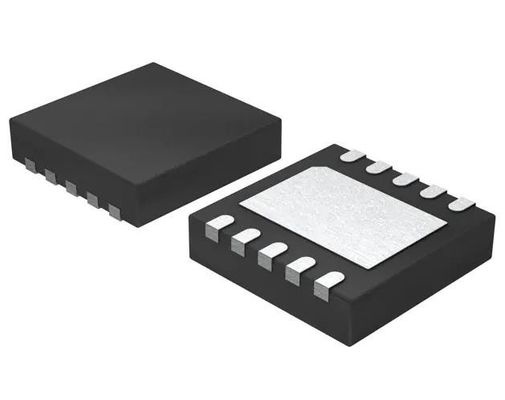

| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-TDFN (2.2x2.2) |
| Base Product Number | AAT3176 |
Features of AAT3176AIDH-T1
• 2.7V to 5.5V Supply Voltage Range
• Up to 500mA Output Drive Capability at 3.6V V IN
• Flexible Brightness Control
▪ 16 Step Output Current by S2Cwire
• Separate External Resistors to Set Maximum Flash and Movie-Mode Current
• Dual Mode 1x/2x Charge Pump
• < 1.0μA in Shutdown
• Small Application Circuit
• Automatic Soft-Start Limits Inrush Current
• Open- and Short-Circuit Protection
• Thermal Shutdown Protection
• -40 to +85°C Temperature Range
• 10-pin TDFN2.2x2.2 Package
Applications of AAT3176AIDH-T1
• Digital Still Cameras (DSC)
• LED Photo Flash/Torch
• Mobile Handsets
• PDAs and Notebook PCs
Environmental & Export Classifications of AAT3176AIDH-T1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
