SN74CB3Q3305PWR Integrated Circuit Chip BUS SWITCH 1 X 1/1 8TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74CB3Q3305PWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Independent Circuits: | 2 | Type: | Bus Switch |
|---|---|---|---|
| Circuit: | 1 X 1:1 | Voltage Supply Source: | Single Supply |
| Voltage - Supply: | 2.3V ~ 3.6V | Operating Temperature: | -40°C ~ 85°C |
| High Light: | SN74CB3Q3305PWR Integrated Circuit Chip,Integrated Circuit Chip 8TSSOP |
||
Product Description

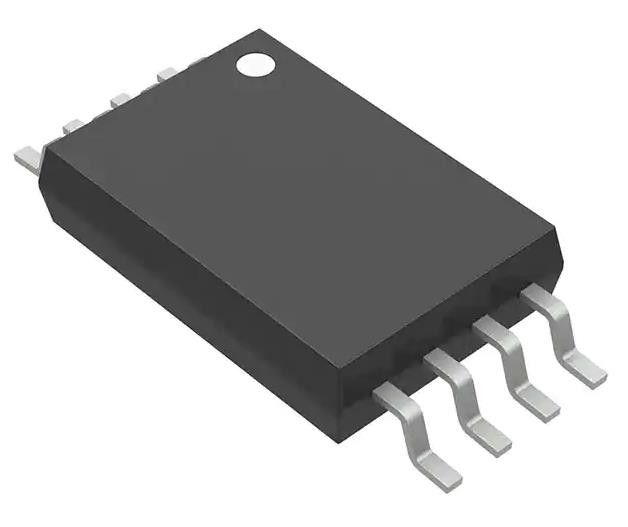

SN74CB3Q3305PWR Integrated Circuit Chip BUS SWITCH 1 X 1:1 8TSSOP
SN74CB3Q3305PWR Bus Switch 1 x 1:1 8-TSSOP
Specifications of SN74CB3Q3305PWR
| Category | Integrated Circuits (ICs) |
| Signal Switches, Multiplexers, Decoders | |
| Mfr | Texas Instruments |
| Series | 74CB |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Bus Switch |
| Circuit | 1 x 1:1 |
| Independent Circuits | 2 |
| Current - Output High, Low | - |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2.3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 8-TSSOP |
| Base Product Number | 74CB3Q3305 |
Features of SN74CB3Q3305PWR
• High-bandwidth data path (up to 500 MHz)1
• 5-V tolerant I/Os with device powered up or powered down
• Low and flat ON-state resistance (ron) characteristics over operating range (ron = 3 Ω typical)
• Supports input voltage beyond supply on data I/O ports
– 0 to 5 V switching with 3.3 V VCC
– 0 to 3.3 V switching with 2.5 V VCC
• Bidirectional data flow with near-zero propagation delay
• Low input or output capacitance minimizes loading and signal distortion (Cio(OFF) = 3.5 pF typical)
• Fast switching frequency (fOE = 20 MHz maximum)
• Data and control inputs provide undershoot clamp diodes
• Low power consumption (ICC = 0.25 mA typical)
• VCC operating range from 2.3 V to 3.6 V
• Data I/Os support 0 to 5 V signaling levels (0.8 V,1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V, and 5 V)
• Control inputs can be driven by TTL or 5 V/3.3 V CMOS outputs
• Ioff supports partial-power-down mode operation
• Latch-up performance exceeds 100 mA per JESD 78, Class II
Applications of SN74CB3Q3305PWR
• IP phones: wired and wireless
• Optical modules
• Optical networking: video over fiber and EPON
• Private branch exchange (PBX)
• WiMAX and wireless infrastructure equipment
• USB, differential signal interface
• Bus isolation
Environmental & Export Classifications of SN74CB3Q3305PWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
