TXB0104RGYR Voltage Level Translator Bidirectional 1 Circuit 4 Channel 100Mbps
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TXB0104RGYR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Circuits: | 1 | Channels Per Circuit: | 4 |
|---|---|---|---|
| Voltage - VCCA: | 1.2 V ~ 3.6 V | Voltage - VCCB: | 1.65 V ~ 5.5 V |
| Input Signal: | - | Package / Case: | 14-VFQFN Exposed Pad |
| Output Type: | Tri-State, Non-Inverted | Data Rate: | 100Mbps |
| High Light: | TXB0104RGYR Voltage Level Translator,Bidirectional Voltage Level Translator,4 Channel Voltage Level Translator |
||
Product Description

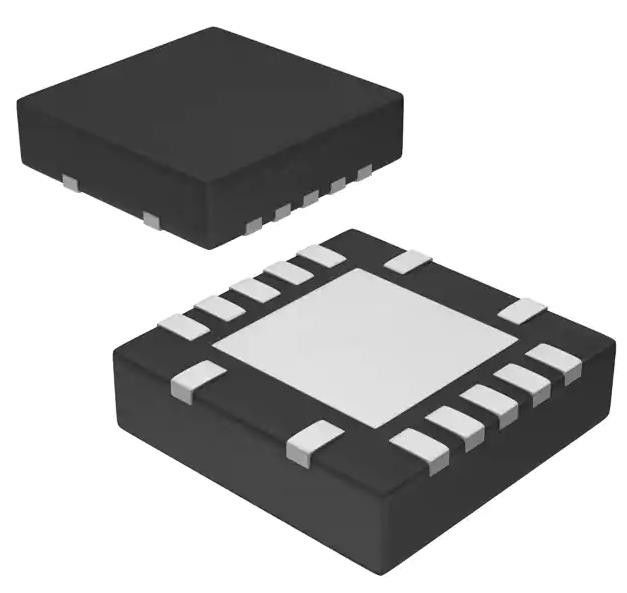

TXB0104RGYR Voltage Level Translator Bidirectional 1 Circuit 4 Channel 100Mbps
IC TRANSLTR BIDIRECTIONAL 14VQFN
Specifications of TXB0104RGYR
| TYPE | DESCRIPTION |
| Category | Translators, Level Shifters |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Translator Type | Voltage Level |
| Channel Type | Bidirectional |
| Number of Circuits | 1 |
| Channels per Circuit | 4 |
| Voltage - VCCA | 1.2 V ~ 3.6 V |
| Voltage - VCCB | 1.65 V ~ 5.5 V |
| Input Signal | - |
| Output Signal | - |
| Output Type | Tri-State, Non-Inverted |
| Data Rate | 100Mbps |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Features | Auto-Direction Sensing |
| Mounting Type | Surface Mount |
| Package / Case | 14-VFQFN Exposed Pad |
| Supplier Device Package | 14-VQFN (3.5x3.5) |
| Base Product Number | TXB0104 |
Features of TXB0104RGYR
• 1.2-V to 3.6-V on A port and 1.65-V to 5.5-V on B port (VCCA ≤ VCCB)
• VCC isolation feature: if either VCC input ss at GND,all outputs are in the high-impedance state
• Output enable (OE) input circuit referenced to VCCA
• Low power consumption, 5-μA maximum ICC
• I OFF supports partial power-down mode operation
• Latch-up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
– A Port:
• 2500-V Human-Body Model (A114-B)
• 1500-V Charged-Device Model (C101)
– B Port:
• ±15-kV Human-Body Model (A114-B)
• 1500-V Charged-Device Model (C101)
Applications of TXB0104RGYR
• Headsets
• Smartphones
• Tablets
• Desktop PC
Environmental & Export Classifications of TXB0104RGYR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
