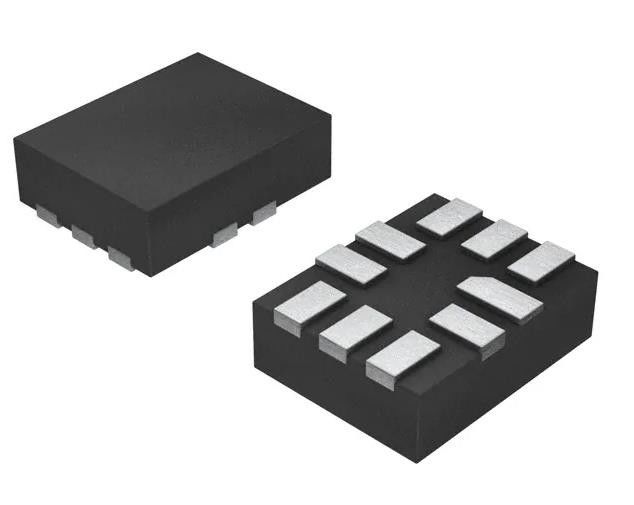

TS3USB30ERSWR Integrated Circuit Chip USB Switch IC 1 Channel 10-UQFN (1.8x1.4)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TS3USB30ERSWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Bi-Directional, USB 2.0 | Voltage - Supply, Single (V+): | 3V ~ 4.3V |
|---|---|---|---|
| Voltage - Supply, Dual (V±): | - | -3db Bandwidth: | 900MHz |
| Switch Circuit: | DPDT | Number Of Channels: | 1 |
| On-State Resistance (Max): | 100hm | Operating Temperature: | -40°C ~ 85°C (TA) |
| High Light: | USB Switch Integrated Circuit Chip,10-UQFN USB Switch IC,TS3USB30ERSWR |
||
Product Description
TS3USB30ERSWR Integrated Circuit Chip USB Switch IC 1 Channel 10-UQFN (1.8x1.4)
IC USB SWITCH DUAL 1X2 10UQFN
Specifications of TS3USB30ERSWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Analog Switches - Special Purpose | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Applications | USB |
| Multiplexer/Demultiplexer Circuit | - |
| Switch Circuit | DPDT |
| Number of Channels | 1 |
| On-State Resistance (Max) | 10Ohm |
| Voltage - Supply, Single (V+) | 3V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| -3db Bandwidth | 900MHz |
| Features | Bi-Directional, USB 2.0 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-UQFN (1.8x1.4) |
| Base Product Number | TS3USB30 |
Features of TS3USB30ERSWR
*Vcc Operation at 3 V to 4.3 V
*D+/D- Pins Tolerate up to 5.25 V
*1.8-V Compatible Control-Pin Inputs
*loFF Supports Partial Power-Down-Mode Operation
*RON = 10 Q Maximum
*RON = 0.35 Q Typical
*Cio(oN) = 7.5 pF Typical
*Low Power Consumption (1 UA Maximum)
*-3-dB Bandwidth = 900 MHz Typical
*Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II )
*ESD Performance Tested Per JESD 22
- 8000-V Human-Body Model(A114-B,Class Il)
- 1000-V Charged-Device Model (C101)
*ESD Performance I/O Port to GND (2)
- 15000-V Human-Body Model
*Packaged in 10-pin UQFN (1.4 mm x 1.8 mm)
Applications of TS3USB30ERSWR
*Routes Signals for USB 1.0, 1.1, and 2.0
*Multi-Purpose Signal Switching
*Portable Electronics
*Industria
*Consumer Products
Environmental & Export Classifications of TS3USB30ERSWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
