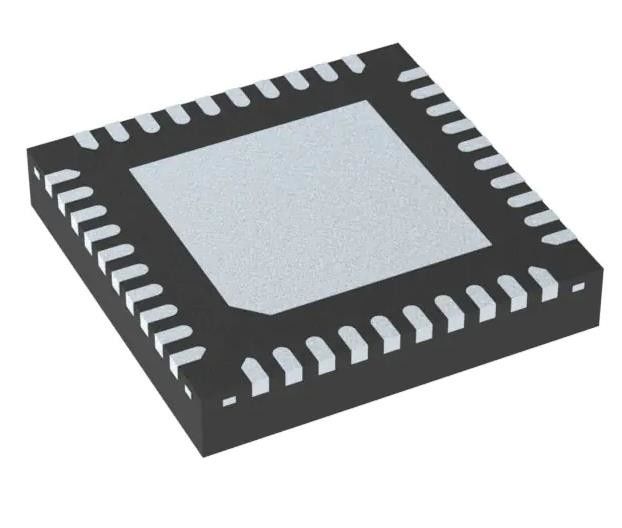

TPS53659RSBR Voltage Regulator IC 2 Output 40-WQFN D-CAP+™ Controller
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS53659RSBR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 2 | Voltage - Input: | 4.5V ~ 17V |
|---|---|---|---|
| Voltage - Output: | 0.25V ~ 1.52V, 0.5V ~ 2.8125V | Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount | Applications: | Controller, Intel VR13 |
| High Light: | Surface Mount Voltage Regulator IC,4.5V Voltage Regulator IC,TPS53659RSBR |
||
Product Description
TPS53659RSBR Voltage Regulator IC 2 Output 40-WQFN D-CAP+™ Controller
D-CAP+™ Controller, Intel VR13 Voltage Regulator IC 2 Output 40-WQFN (5x5)
Specifications of TPS53659RSBR
| Category | Special Purpose Regulators |
| Mfr | Texas Instruments |
| Series | D-CAP+™ |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Applications | Controller, Intel VR13 |
| Voltage - Input | 4.5V ~ 17V |
| Number of Outputs | 2 |
| Voltage - Output | 0.25V ~ 1.52V, 0.5V ~ 2.8125V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 40-WFQFN Exposed Pad |
| Supplier Device Package | 40-WQFN (5x5) |
| Base Product Number | TPS53659 |
Features of TPS53659RSBR
• Full VR13 Server Feature Set Including Digital Input Power Monitor
• Programmable Loop Compensations
• Configurable with Non-Volatile Memory (NVM) for Low External Component Counts
• Individual Phase Current Calibrations and Reports
• Dynamic Phase Shedding with Programmable Current Threshold for Optimizing Efficiency at Light and Heavy Loads
• Fast Phase-Adding for Undershoot Reduction (USR)
• Backward VR12.0 and VR12.5 Compatible
• 8-Bit DAC with Selectable 5 mV or 10 mV Resolution and Output Ranges from 0.25 V to 1.52 V or 0.5 V to 2.8125 V for Dual Channels
• Driverless Configuration for Efficient HighFrequency Switching
Applications of TPS53659RSBR
• VR13 Memory Power of Server and Telecom Applications
• ASIC Needs Dual Power Rails
• High-Performance Processor Power
Environmental & Export Classifications of TPS53659RSBR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
