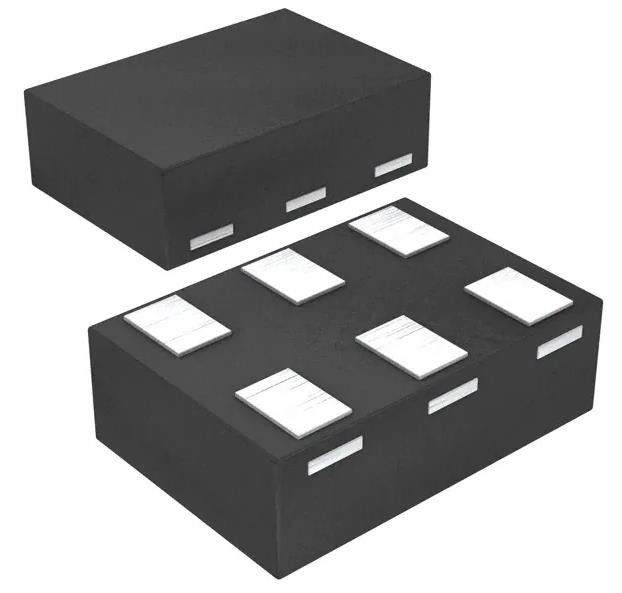

TPS3422EGDRYT Integrated Circuit Chip 1 Channel 6-SON (1.45x1) Open Collector
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS3422EGDRYT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output: | Open Drain Or Open Collector | Reset: | Active Low |
|---|---|---|---|
| Reset Timeout: | 320ms Minimum | Operating Temperature: | -40°C ~ 125°C (TJ) |
| Package: | Tape & Reel (TR) | Mounting Type: | Surface Mount |
| High Light: | 1 Channel Integrated Circuit Chip,Active Integrated Circuit Chip,TPS3422EGDRYT |
||
Product Description
TPS3422EGDRYT Integrated Circuit Chip1 Channel 6-SON (1.45x1) Open Collector
IC SUPERVISOR 2 CHANNEL 6SON
Specifications of TPS3422EGDRYT
| TYPE | DESCRIPTION |
| Category | Supervisors |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Reset Timer |
| Number of Voltages Monitored | 2 |
| Voltage - Threshold | Adjustable/Selectable |
| Output | Open Drain or Open Collector |
| Reset | Active Low |
| Reset Timeout | 320ms Minimum |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN |
| Supplier Device Package | 6-SON (1.45x1) |
| Base Product Number | TPS3422 |
Features of TPS3422EGDRYT
*Very Small Package: 1.45-mm x 1.00-mm SON
*Operating Range: 1.6 V to 6.5 V
*Single (TPS3422) or Dual (TPS3420 andTPS3421) Push-Button Inputs
*Low Supply Current: 250 nA (Typical)
*Two-State Logic, User-Selectable Input Delay
- For Example: 7.5 s and 0 s
- Multiple Timing Options Available
*Fixed Time-out Pulse at RST (TPS3421 andTPS3422): 400 ms(Typical)
-Other Timing Options Available on Request
*Active Low, Open-Drain Output
Applications of TPS3422EGDRYT
*Smart Phones
*Tablets, UltrabooksTw
*Gaming Consoles
*Portable Consumers
*Navigation Devices
*Consumer Medical
*Toys
Environmental & Export Classifications of TPS3422EGDRYT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
