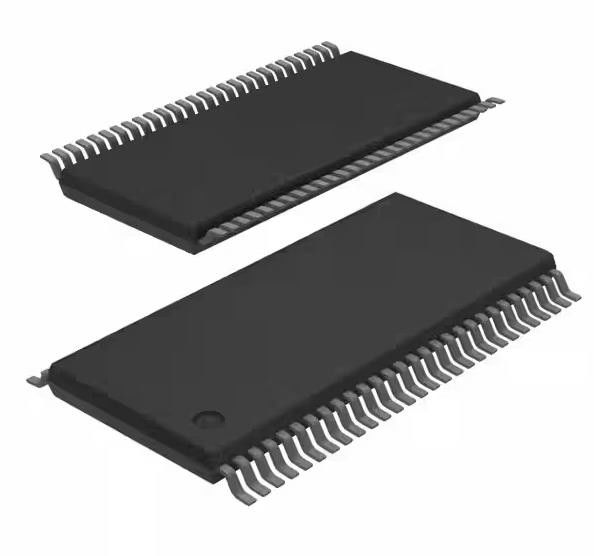

DS90CR286AMTDX/NOPB Integrated Circuit Chip Interface 56-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DS90CR286AMTDX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000pcs |
|
Detail Information |
|||
| Product Status: | Active | Applications: | - |
|---|---|---|---|
| Interface: | - | Voltage - Supply: | 3V ~ 3.6V |
| Package / Case: | 56-TFSOP (0.240", 6.10mm Width) | Supplier Device Package: | 56-TSSOP |
Product Description
DS90CR286AMTDX/NOPB Integrated Circuit Chip Interface 56-TSSOP
IC INTERFACE SPECIALIZED 56TSSOP
Specifications of DS90CR286AMTDX/NOPB
| TYPE | DESCRIPTION |
| Category | Specialized Integrated Circuits (ICs) |
| Interface | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Applications | - |
| Interface | - |
| Voltage - Supply | 3V ~ 3.6V |
| Package / Case | 56-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 56-TSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | DS90CR286 |
Features of DS90CR286AMTDX/NOPB
• 20 to 66 MHz Shift Clock Support
• 50% Duty Cycle on Receiver Output Clock
• Best–in–Class Set and Hold Times on Rx Outputs
• Rx Power Consumption < 270 mW (Typ) at 66 MHz Worst Case
• Rx Power-Down Mode < 200 μW (Max)
• ESD Rating > 7 kV (HBM), > 700 V (EIAJ)
• PLL Requires No External Components
• Compatible with TIA/EIA-644 LVDS Standard
• Low Profile 56-Pin or 48-Pin DGG (TSSOP) Package
• Operating Temperature: −40°C to 85°C
• Automotive Q Grade Available - AEC-Q100 Grade 3 Qualified
Applications of DS90CR286AMTDX/NOPB
• Video Displays
• Automotive Infotainment
• Industrial Printers and Imaging
• Digital Video Transport
• Machine Vision
Environmental & Export Classifications of DS90CR286AMTDX/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991B1 |
| HTSUS | 8542.39.0001 |
