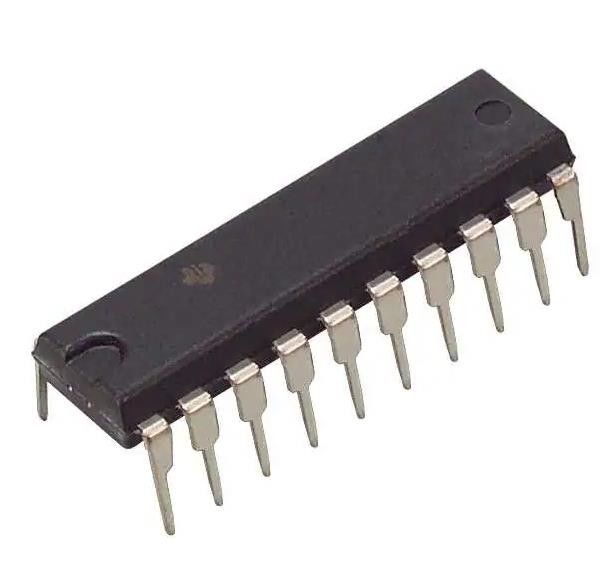

SN74HC244N Buffer Integrated Circuit Chip 4 Bit per Element 3-State 20-PDIP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74HC244N |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000pcs |
|
Detail Information |
|||
| Number Of Bits Per Element: | 4 | Input Type: | - |
|---|---|---|---|
| Output Type: | 3-State | Current - Output High, Low: | 7.8mA, 7.8mA |
| Voltage - Supply: | 2V ~ 6V | Operating Temperature: | -40°C ~ 85°C (TA) |
Product Description
SN74HC244N Buffer Integrated Circuit Chip 4 Bit per Element 3-State 20-PDIP
Integrated circuit ic chip BUFFER NON-INVERT 6V 20DIP
Specifications of SN74HC244N
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | 74HC |
| Package | Tube |
| Product Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 7.8mA, 7.8mA |
| Voltage - Supply | 2V ~ 6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
| Base Product Number | 74HC244 |
Features of SN74HC244N
• Wide Operating Voltage Range of 2 V to 6 V
• High-Current Outputs Drive Up to 15 LSTTL Loads
• 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
• Low Power Consumption: ICC, 80-µA (Maximum)
• Typical tpd = 11 ns
• ±6-mA Output Drive at 5 V
• Low Input Current of 1 µA (Maximum)
• On Products Compliant to MIL-PRF-38535, All Parameters Are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.
Applications of SN74HC244N
• Servers
• LED Displays
• Network Switches
• Telecom Infrastructure
• Motor Drivers
• I/O Expanders
Environmental & Export Classifications of SN74HC244N
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
