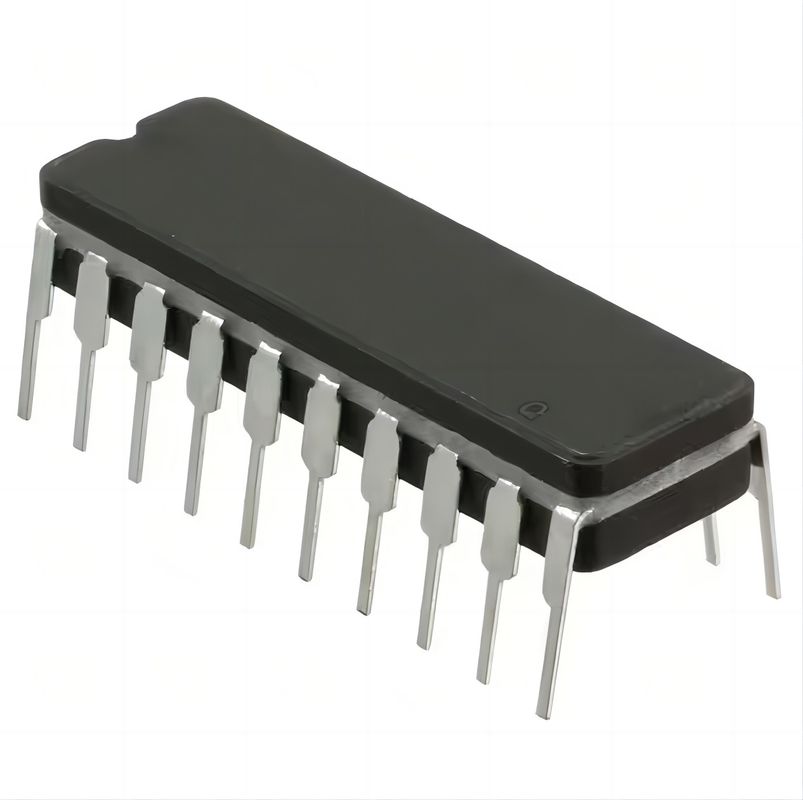

IDT54FCT373ATDB D Type Transparent Latch 1 Channel
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | IDT54FCT373ATDB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Supplier Device Package: | 20-CDIP | Operating Temperature: | -55°C ~ 125°C |
|---|---|---|---|
| Delay Time - Propagation: | 9.8ns | Independent Circuits: | 1 |
| Voltage - Supply: | 4.5V ~ 5.5V | Output Type: | Tri-State |
| Circuit: | 8:8 | Logic Type: | D-Type Transparent Latch |
| Highlight: | IDT54FCT373ATDB,D Type Transparent Latch,Transparent D Latch |
||
Product Description
IDT54FCT373ATDB D-Type Transparent Latch 1 Channel 8:8 IC Tri-State 20-CDIP
54FCT373 - FAST CMOS OCTAL TRANS
Specifications of IDT54FCT373ATDB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Latches | |
| Mfr | IDT, Integrated Device Technology Inc |
| Series | - |
| Package | Bulk |
| Product Status | Active |
| Logic Type | D-Type Transparent Latch |
| Circuit | 8:08 |
| Output Type | Tri-State |
| Voltage - Supply | 4.5V ~ 5.5V |
| Independent Circuits | 1 |
| Delay Time - Propagation | 9.8ns |
| Current - Output High, Low | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 20-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 20-CDIP |
| Base Product Number | 54FCT373 |
Features of IDT54FCT373ATDB
• Std., A, and C grades
• Low input and output leakage ≤1µA (max.)
• CMOS power levels
• True TTL input and output compatibility:
– VOH = 3.3V (typ.)
– VOL = 0.3V (typ.)
• High Drive outputs (-15mA IOH, 48mA IOL)
• Meets or exceeds JEDEC standard 18 specifications
• Military product compliant to MIL-STD-883, Class B and DESC listed (dual marked)
• Power off disable outputs permit "live insertion"
• Available in the following packages:
– Industrial: SOIC, SSOP, QSOP
– Military: CERDIP, LCC
Descriptions of IDT54FCT373ATDB
The FCT373Tis an octal transparent latch built using an advanced dual metal CMOS technology. These octal latches have 3-state outputs and are intended for bus oriented applications. The flip-flops appear transparent to the data when Latch Enable (LE) is high. When LE is low, the data that meets the set-up time is latched. Data appears on the bus when the Output Enable (OE) is low. When OE is high, the bus output is in the high-impedance state.
Environmental & Export Classifications of IDT54FCT373ATDB
| ATTRIBUTE | DESCRIPTION |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
