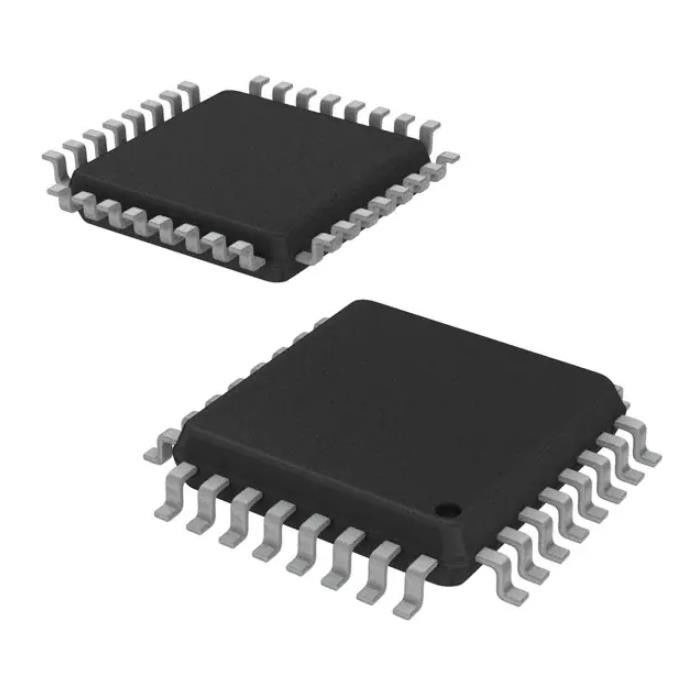

S9S08RN32W1MLCR Microcontroller IC MCU 8BIT 32KB FLASH 32LQFP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | S9S08RN32W1MLCR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Series: | S08 | Package: | Tape & Reel (TR) |
|---|---|---|---|
| Product Status: | Active | Digi-Key Programmable: | Not Verified |
| Core Processor: | S08 | Core Size: | 8-Bit |
| Speed: | 20MHz | Connectivity: | I²C, LINbus, SPI, UART/USART |
| High Light: | S9S08RN32W1MLCR,Microcontroller IC MCU 8BIT,IC MCU 8BIT 32KB |
||
Product Description
S9S08RN32W1MLCR Current Sense Resistors Ic Mcu 8bit 32kb Flash 32lqfp
S08 S08 Microcontroller IC 8-Bit 20MHz 32KB (32K x 8) FLASH 32-LQFP (7x7)
Specifications of S9S08RN32W1MLCR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | NXP USA Inc. |
| Series | S08 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Core Processor | S08 |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I²C, LINbus, SPI, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 26 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 256 x 8 |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-LQFP |
| Supplier Device Package | 32-LQFP (7x7) |
| Base Product Number | S9S08 |
Features of S9S08RN32W1MLCR
• 8-Bit S08 central processor unit (CPU)
– Up to 20 MHz bus at 2.7 V to 5.5 V across temperature range of -40 °C to 125 °C
– Supporting up to 40 interrupt/reset sources
– Supporting up to four-level nested interrupt
– On-chip memory
– Up to 60 KB flash read/program/erase over full operating voltage and temperature
– Up to 256 byte EEPROM with ECC; 2-byte erase sector; EEPROM program and erase while executing code from flash
– Up to 4096 byte random-access memory (RAM)
– Flash and RAM access protection
• Power-saving modes
– One low-power stop mode; reduced power wait mode
– Peripheral clock enable register can disable clocks to unused modules, reducing currents; allows clocks to
remain enabled to specific peripherals in stop3 mode
• Clocks
– Oscillator (XOSC) - loop-controlled Pierce oscillator; crystal or ceramic resonator
– Internal clock source (ICS) - containing a frequencylocked-loop (FLL) controlled by internal or external
reference; precision trimming of internal reference allowing 1% deviation across temperature range of 0 °C to 70 °C and -40 °C to 85 °C, 1.5% deviation across temperature range of -40 °C to 105 °C, and 2% deviation acrosstemperature range of -40 °C to 125 °C; up to 20 MHz
• System protection
– Watchdog with independent clock source
– Low-voltage detection with reset or interrupt; selectable trip points
– Illegal opcode detection with reset
– Illegal address detection with reset
Applications of S9S08RN32W1MLCR
Part numbers for the chip have fields that identify the specific part. You can use the values of these fields to determine the specific part you have received.
Environmental & Export Classifications of S9S08RN32W1MLCR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
