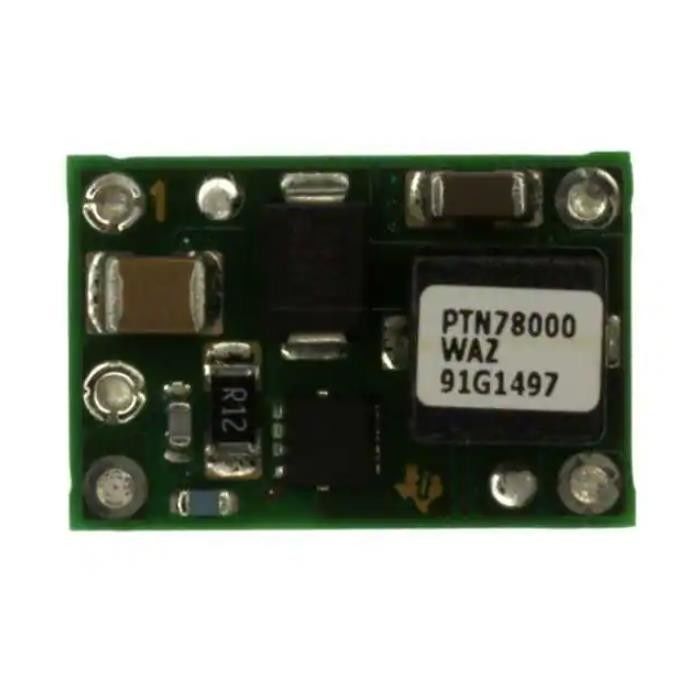

PTN78000WAZ Non Isolated PoL Module Dc Dc Converter 2.5V-12.6v 7V
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | PTN78000WAZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Mfr: | Texas Instruments | Series: | PTN78000W |
|---|---|---|---|
| Package: | Tray | Product Status: | Active |
| Type: | Non-Isolated PoL Module | Number Of Outputs: | 1 |
| Voltage - Input (Min): | 7V | Voltage - Input (Max): | 36V |
| Highlight: | PTN78000WAZ,Dc Dc Converter 2.5V,Dc Dc Converter 12.6V |
||
Product Description
PTN78000WAZ Tantalum Chip Capacitor Dc Dc Converter 2.5-12.6v
Non-Isolated PoL Module DC DC Converter 1 Output 2.5 ~ 12.6V 1.5A 7V - 36V Input
PTN78000WAZ Tantalum Chip Capacitor Dc Dc Converter 2.5-12.6v 7V
Specifications of PTN78000WAZ
| TYPE | DESCRIPTION |
| Mfr | Texas Instruments |
| Series | PTN78000W |
| Package | Tray |
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 7V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 2.5 ~ 12.6V |
| Current - Output (Max) | 1.5A |
| Applications | ITE (Commercial) |
| Features | OCP, OTP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 91% |
| Mounting Type | Surface Mount |
| Package / Case | 5-SMD Module |
| Size / Dimension | 0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm) |
| Base Product Number | PTN78000 |
FEATURES of PTN78000WAZ
• 1.5-A Output Current
• Wide-Input Voltage(7 V to 36 V) / (15 V to 36 V)
• Wide-Output Voltage Adjust(2.5 V to 12.6 V) / (11.85 V to 22 V)
• High Efficiency (Up to 95%)
• On/Off Inhibit
• Undervoltage Lockout
• Output Current Limit ,
• Overtemperature Shutdown
• Operating Temperature: –40°C to 85°C
• Surface Mount Package Available
Applications of PTN78000WAZ
• General-Purpose, Industrial Controls,HVAC Systems, Test and Measurement,Medical Instrumentation, AC/DC Adaptors,Vehicles, Marine, and Avionics
Environmental & Export Classifications of PTN78000WAZ
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8504.40.9580 |
