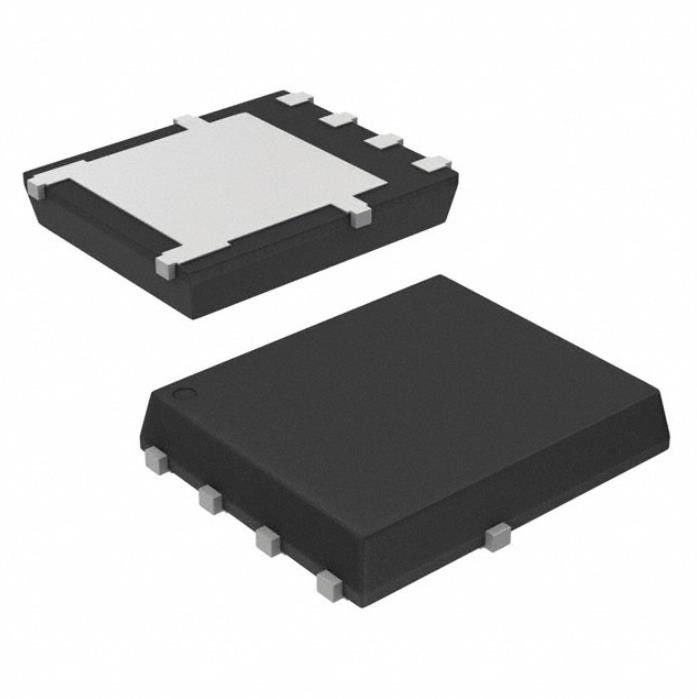

NVMFWS015N10MCLT1G PTNG 100V LL NCH SO-8FL WETTABLE
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NVMFWS015N10MCLT1G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | FET Type: | N-Channel |
|---|---|---|---|
| Technology: | MOSFET (Metal Oxide) | Drain To Source Voltage (Vdss): | 100 V |
| Current - Continuous Drain (Id) @ 25°C: | 10.5A (Ta), 54A (Tc) | Drive Voltage (Max Rds On, Min Rds On): | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs: | 12.2mOhm @ 14A, 10V | Vgs(th) (Max) @ Id: | 3V @ 77µA |
| Highlight: | NVMFWS015N10MCLT1G,PTNG 100V LL NCH,100V LL NCH SO-8FL |
||
Product Description
NVMFWS015N10MCLT1G Tantalum Chip Capacitor Ptng 100v Ll Nch So-8fl Wettable
N-Channel 100 V 10.5A (Ta), 54A (Tc) 3W (Ta), 79W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL)
Specifications of NVMFWS015N10MCLT1G
| TYPE | DESCRIPTION |
| Category | Transistors |
| FETs, MOSFETs | |
| Mfr | onsemi |
| Series | Automotive, AEC-Q101 |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 10.5A (Ta), 54A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 12.2mOhm @ 14A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 77µA |
| Gate Charge (Qg) (Max) @ Vgs | 19 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1338 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 3W (Ta), 79W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-DFN (5x6) (8-SOFL) |
| Package / Case | 8-PowerTDFN, 5 Leads |
FEATURES of NVMFWS015N10MCLT1G
• Small Footprint (5x6 mm) for Compact Design
• Low RDS(on) to Minimize Conduction Losses
• Low QG and Capacitance to Minimize Driver Losses
• NVMFWS015N10MCL − Wettable Flank Option for Enhanced Optical Inspection
Applications of NVMFWS015N10MCLT1G
1. The entire application environment impacts the thermal resistance values shown
and they are not constants and are only valid for the particular conditions noted.
2. Surface−mounted on FR4 board using a 650 mm2, 2 oz. Cu pad.
3. Maximum current for pulses as long as 1 second is higher but is dependent on pulse duration and duty cycle.
Environmental & Export Classifications of NVMFWS015N10MCLT1G
| ATTRIBUTE | DESCRIPTION |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
