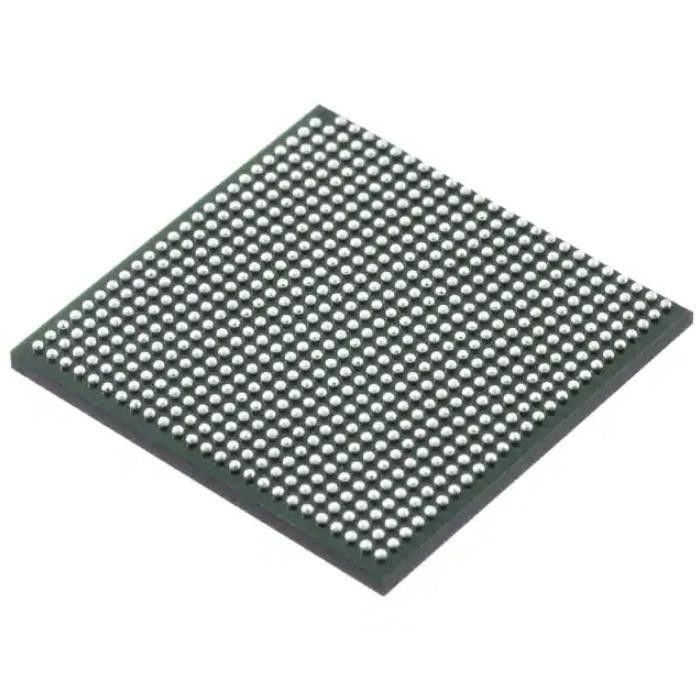

MCIMX6Q6AVT10AE TVS DIODE SMD IC MPU I.MX6Q 1GHZ 624FCBGA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MCIMX6Q6AVT10AE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - I/O: | 1.8V, 2.5V, 2.8V, 3.3V | Operating Temperature: | -40°C ~ 125°C (TJ) |
|---|---|---|---|
| Security Features: | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection | Mounting Type: | Surface Mount |
| Package / Case: | 624-FBGA, FCBGA | Supplier Device Package: | 624-FCBGA (21x21) |
| Additional Interfaces: | CAN, I²C, I²S, MMC/SD/SDIO, SAI, SPI, SSI, UART | Base Product Number: | MCIMX6 |
| High Light: | MCIMX6Q6AVT10AE,TVS DIODE SMD IC,IC MPU I.MX6Q 1GHZ |
||
Product Description
MCIMX6Q6AVT10AE Tvs Diode Smd Ic Mpu I.Mx6q 1.0ghz 624fcbga 568-13535-ND
ARM® Cortex®-A9 Microprocessor IC i.MX6Q 4 Core, 32-Bit 1.0GHz 624-FCBGA (21x21)
Specifications of MCIMX6Q6AVT10AE
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microprocessors | |
| Mfr | NXP USA Inc. |
| Series | i.MX6Q |
| Package | Tray |
| Product Status | Active |
| Core Processor | ARM® Cortex®-A9 |
| Number of Cores/Bus Width | 4 Core, 32-Bit |
| Speed | 1.0GHz |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR2, LVDDR3, DDR3 |
| Graphics Acceleration | Yes |
| Display & Interface Controllers | Keypad, LCD |
| Ethernet | 10/100/1000Mbps (1) |
| SATA | SATA 3Gbps (1) |
| USB | USB 2.0 + PHY (4) |
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.3V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Security Features | ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection |
| Mounting Type | Surface Mount |
| Package / Case | 624-FBGA, FCBGA |
| Supplier Device Package | 624-FCBGA (21x21) |
| Additional Interfaces | CAN, I²C, I²S, MMC/SD/SDIO, SAI, SPI, SSI, UART |
| Base Product Number | MCIMX6 |
FEATURES of MCIMX6Q6AVT10AE
• Graphics rendering for Human Machine Interfaces (HMI)
• High-performance speech processing with large databases
• Audio playback
• Arm Cortex-A9 MPCore 4xCPU processor (with TrustZone®)
• The core configuration is symmetric, where each core includes:
• Frequency of the core (including Neon and L1 cache) as per Table 6.
• NEON MPE coprocessor
Applications of MCIMX6Q6AVT10AE
• General Interrupt Controller (GIC) with 128 interrupt support
• Global Timer
• Snoop Control Unit (SCU)
• 1 MB unified I/D L2 cache, shared by two/four cores
• Two Master AXI (64-bit) bus interfaces output of L2 cache
Environmental & Export Classifications of MCIMX6Q6AVT10AE
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A992C |
| HTSUS | 8542.31.0001 |
