0.5V -1.8V TVS DIODE SMD Isolated Module DC DC CONVERTER
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LTM4677IY#PBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tray | Product Status: | Active |
|---|---|---|---|
| Type: | Isolated Module | Number Of Outputs: | 2 |
| Voltage - Input (Min): | 4.5V | Voltage - Input (Max): | 16V |
| Voltage - Output 1: | 0.5 ~ 1.8V | Voltage - Output 2: | 0.5 ~ 1.8V |
| Highlight: | TVS DIODE SMD,1.8V TVS DIODE,0.5V TVS DIODE |
||
Product Description
LTM4677IY#PBF Tvs Diode Smd Dc Dc Cnvrtr 0.5-1.8v 0.5-1.8v Dc Dc Cnvrtr 0.5-1.8v 0.5-1.8v
Isolated Module DC DC Converter 2 Output 0.5 ~ 1.8V 0.5 ~ 1.8V 18A, 18A 4.5V - 16V Input
Specifications of LTM4677IY#PBF
| TYPE | DESCRIPTION |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | Analog Devices Inc. |
| Series | µModule® |
| Package | Tray |
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 16V |
| Voltage - Output 1 | 0.5 ~ 1.8V |
| Voltage - Output 2 | 0.5 ~ 1.8V |
| Voltage - Output 3 | - |
| Current - Output (Max) | 18A, 18A |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 125°C |
| Efficiency | - |
| Mounting Type | Surface Mount |

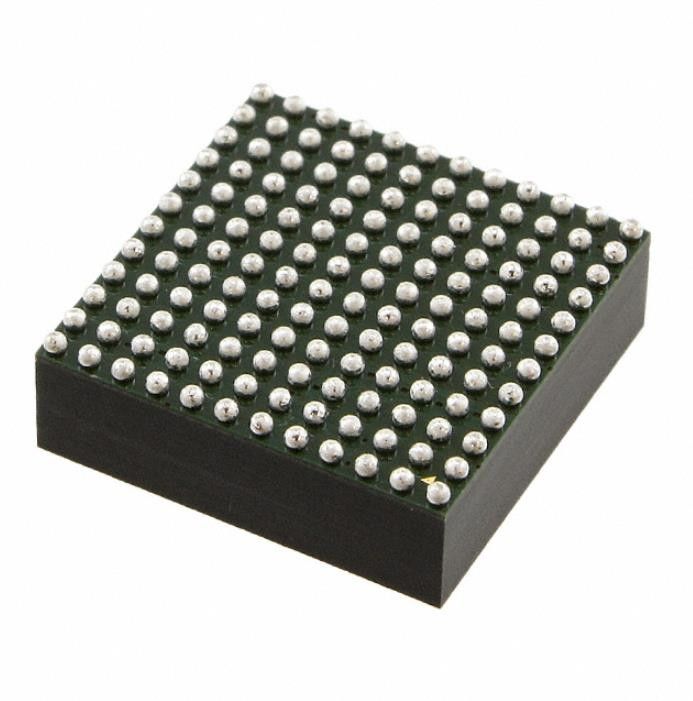

| Package / Case | 144-BBGA Module |
| Size / Dimension | 0.63" L x 0.63" W x 0.20" H (16.0mm x 16.0mm x 5.0mm) |
| Supplier Device Package | 144-BGA (16x16) |
| Base Product Number | LTM4677 |
FEATURES of LTM4677IY#PBF
• Dual, Fast, Analog Loops with Digital Interface for Control and Monitoring
• Wide Input Voltage Range: 4.5V to 16V
• Output Voltage Range: 0.5V to 1.8V
• ±0.5% Maximum DC Output Error Over Temperature
• ±2.5% Current Readback Accuracy
• Pin Compatible with LTM4676A (Dual 13A, Single 26A)
• 400kHz PMBus-Compliant I2C Serial Interface
• Supports Telemetry Polling Rates up to 125Hz
• Integrated 16-Bit ∆Σ ADC
• Constant Frequency Current Mode Control
• Parallel and Current Share Multiple Modules
• 16mm × 16mm × 5.01mm BGA Package Readable Data:
• Input and Output Voltages, Currents, and Temperatures
• Running Peak Values, Uptime, Faults and Warnings
• Onboard EEPROM Fault Log Record with ECC Writable Data and Configurable Parameters:
• Output Voltage, Voltage Sequencing and Margining
• Digital Soft-Start/Stop Ramp
• OV/UV/OT, UVLO, Frequency and Phasing
Applications of LTM4677IY#PBF
• System Optimization, Characterization and Data Mining in Prototype, Production and Field Environments
• Telecom, Datacom, and Storage Systems
Environmental & Export Classifications of LTM4677IY#PBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 4 (72 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
