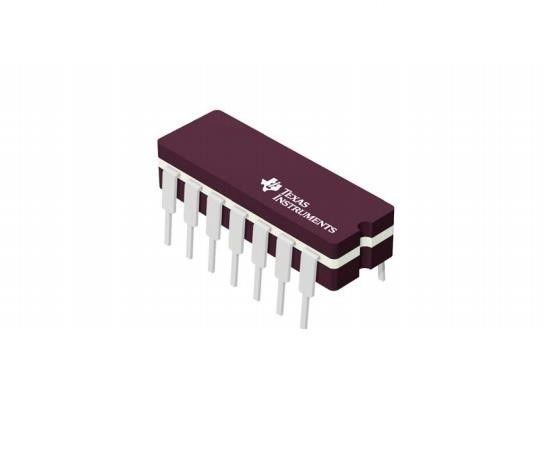

TL064MJ Amplifier IC OPAMP JFET 4 CIRCUIT 14CDIP 30pA 3mV
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TL064MJ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Circuits: | 4 | Slew Rate: | 3.5V/µs |
|---|---|---|---|
| Gain Bandwidth Product: | 1 MHz | Current - Input Bias: | 30 PA |
| Voltage - Input Offset: | 3 MV | Current - Supply: | 200µA (x4 Channels) |
| Current - Output / Channel: | 10 MA | Voltage - Supply Span (Min): | 10 V |
| Highlight: | TL064MJ Amplifier IC,Amplifier IC OPAMP JFET,30pA 3mV Amplifier IC |
||
Product Description
TL064MJ SMD LED Chip J-FET Amplifier 4 Circuit 14-CDIP 30 pA 3 mV
IC OPAMP JFET 4 CIRCUIT 14CDIP
Specifications of TL064MJ
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Bulk |
| Product Status | Active |
| Amplifier Type | J-FET |
| Number of Circuits | 4 |
| Output Type | - |
| Slew Rate | 3.5V/µs |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 30 pA |
| Voltage - Input Offset | 3 mV |
| Current - Supply | 200µA (x4 Channels) |
| Current - Output / Channel | 10 mA |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 60 V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 14-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 14-CDIP |
Features of TL064MJ
* Very Low Power Consumption
* Typical Supply Current: 200 μA(Per Amplifier)
* Wide Common-Mode and Differential Voltage Ranges
* Low Input Bias and Offset Currents
* Common-Mode Input Voltage Range Includes Vcc+
* Output Short-Circuit Protection
* High Input Impedance:JFET-Input Stage Internal Frequency Compensation
* Latch-Up-Free Operation High Slew Rate:3.5 V/us Typical
* On Products Compliant to MIL-PRF-38535, AllParametersAreTestedUnlessOtherwise Noted. On All Other Products. Production Processing Does Not Necessarily Include Testing of All Parameters.
Environmental & Export Classifications of TL064MJ
| ATTRIBUTE | DESCRIPTION |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
