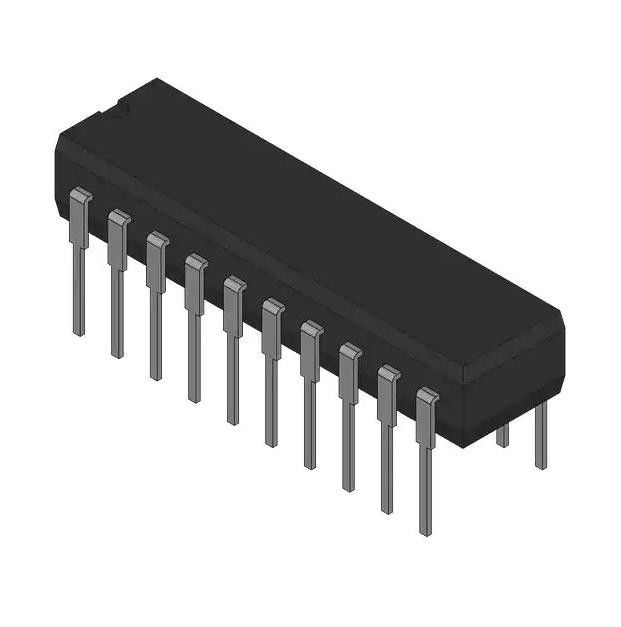

SN54ALS573CJ IC D Type Transparent Latch 1 Channel
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN54ALS573CJ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Circuit: | 8:8 | Output Type: | Tri-State |
|---|---|---|---|
| Voltage - Supply: | 4.5V ~ 5.5V | Independent Circuits: | 1 |
| Delay Time - Propagation: | 8ns | Current - Output High, Low: | 2.6mA, 24mA |
| Operating Temperature: | -55°C ~ 125°C | Package / Case: | 20-CDIP (0.300", 7.62mm) |
| Highlight: | SN54ALS573CJ,D Type Transparent Latch,Transparent Latch 1 Channel |
||
Product Description
SN54ALS573CJ IC D-Type Transparent Latch 1 Channel 8:8 Tri-State 20-CDIP
54ALS573C OCTAL D-TYPE TRANSPARE
Specifications of SN54ALS573CJ
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Latches | |
| Mfr | Texas Instruments |
| Series | 54ALS |
| Package | Bulk |
| Product Status | Active |
| Logic Type | D-Type Transparent Latch |
| Circuit | 8:08 |
| Output Type | Tri-State |
| Voltage - Supply | 4.5V ~ 5.5V |
| Independent Circuits | 1 |
| Delay Time - Propagation | 8ns |
| Current - Output High, Low | 2.6mA, 24mA |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 20-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 20-CDIP |
| Base Product Number | 54ALS573 |
Features of SN54ALS573CJ
• 3-State Buffer-Type Outputs Drive Bus Lines Directly
• Bus-Structured Pinout
• True Logic Outputs
• Package Options Include Plastic Small-Outline (DW) Packages,
Ceramic Chip Carriers (FK), Standard Plastic (N) and
Ceramic (J) 300-mil DIPs, and Ceramic Flat (W) Packages
Environmental & Export Classifications of SN54ALS573CJ
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
