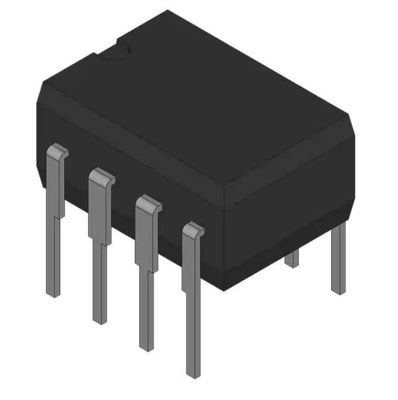

ADE Chip LM311J-8 Transistor IC COMPARATOR 1 DIFF 8CDIP Comparator
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM311J-8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Elements: | 1 | Voltage - Supply, Single/Dual (±): | 3.5V ~ 30V, ±1.75V ~ 15V |
|---|---|---|---|
| Voltage - Input Offset (Max): | 7.5mV @ ±15V | Current - Input Bias (Max): | 0.25µA @ ±15V |
| Current - Quiescent (Max): | 5mA, 7.5mA | Propagation Delay (Max): | 165ns (Typ) |
| Operating Temperature: | 0°C ~ 70°C | Package / Case: | 8-CDIP (0.300", 7.62mm) |
| Highlight: | LM311J-8 Transistor IC,8CDIP Transistor IC,ADE Chip LM311J-8 |
||
Product Description
LM311J-8 Transistor IC Chip COMPARATOR 1 DIFF 8CDIP Comparator
Comparator Differential Open-Collector, Open-Emitter 8-CDIP
Specifications of LM311J-8
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Comparators | |
| Mfr | National Semiconductor |
| Series | - |
| Package | Bulk |
| Product Status | Active |
| Type | Differential |
| Number of Elements | 1 |
| Output Type | Open-Collector, Open-Emitter |
| Voltage - Supply, Single/Dual (±) | 3.5V ~ 30V, ±1.75V ~ 15V |
| Voltage - Input Offset (Max) | 7.5mV @ ±15V |
| Current - Input Bias (Max) | 0.25µA @ ±15V |
| Current - Output (Typ) | - |
| Current - Quiescent (Max) | 5mA, 7.5mA |
| CMRR, PSRR (Typ) | - |
| Propagation Delay (Max) | 165ns (Typ) |
| Hysteresis | - |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 8-CDIP (0.300", 7.62mm) |
| Mounting Type | Through Hole |
| Supplier Device Package | 8-CDIP |
Features of LM311J-8
■ Operates from single 5V supply
■ Input current: 150 nA mex. over temperature
■ Offset current:20 nA max.over temperature
■ Differential input voltage range: ±30V
■ Power consumptlon:135mW at 士15V
Environmental & Export Classifications of LM311J-8
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | Vendor Undefined |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
