89HPES10T4G2ZBBCG8 ADE Chip IC Interface Specialized 324cabga
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 89HPES10T4G2ZBBCG8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Series: | PRECISE™ | Package: | Tape & Reel (TR) |
|---|---|---|---|
| Product Status: | Obsolete | Applications: | Switch Interfacing |
| Interface: | PCI Express | Voltage - Supply: | 3.3V |
| Package / Case: | 324-BGA | Supplier Device Package: | 324-CABGA (19x19) |
| Highlight: | 89HPES10T4G2ZBBCG8,IC Interface Specialized 324cabga,ADE Chip IC |
||
Product Description

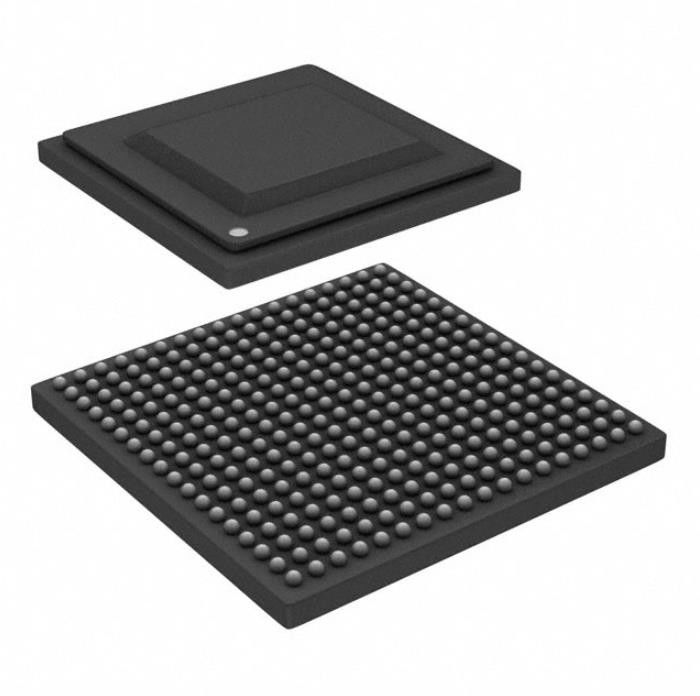

89HPES10T4G2ZBBCG8 Integrated Circuits IC Intface Specialized 324cabga
Switch Interfacing Interface 324-CABGA (19x19)
Specifications of 89HPES10T4G2ZBBCG8
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Specialized | |
| Mfr | Renesas Electronics America Inc |
| Series | PRECISE™ |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Applications | Switch Interfacing |
| Interface | PCI Express |
| Voltage - Supply | 3.3V |
| Package / Case | 324-BGA |
| Supplier Device Package | 324-CABGA (19x19) |
| Mounting Type | Surface Mount |
Features of 89HPES10T4G2ZBBCG8
• High Performance PCI Express Switch
— Ten 5 Gbps Gen2 PCI Express lanes
— Four switch ports
– One x4 upstream port
– Three x2 downstream ports
— Low latency cut-through switch architecture
— Support for Max Payload Size up to 2048 bytes
— One virtual channel
— Eight traffic classes
— PCI Express Base Specification Revision 2.0 compliant
• Flexible Architecture with Numerous Configuration Options
— Automatic per port link width negotiation to x4, x2 or x1
— Automatic lane reversal on all ports
— Automatic polarity inversion
— Ability to load device configuration from serial EEPROM
• Legacy Support
— PCI compatible INTx emulation
— Bus locking
• Highly Integrated Solution
— Incorporates on-chip internal memory for packet buffering and
queueing
— Integrates ten 5 Gbps embedded SerDes with 8b/10b
encoder/decoder (no separate transceivers needed)
– Receive equalization (RxEQ)
• Reliability, Availability, and Serviceability (RAS) Features
— Internal end-to-end parity protection on all TLPs ensures data
integrity even in systems that do not implement end-to-end
CRC (ECRC)
— Supports ECRC and Advanced Error Reporting
— Supports PCI Express Native Hot-Plug, Hot-Swap capable
I/O
— Compatible with Hot-Plug I/O expanders used on PC motherboards
— Supports Hot-Swap
Power Management of 89HPES10T4G2ZBBCG8
— Utilizes advanced low-power design techniques to achieve
low typical power consumption
— Support PCI Express Power Management Interface specification (PCI-PM 1.2)
— Supports PCI Express Active State Power Management
(ASPM) link state
— Supports PCI Express Power Budgeting Capability
— Supports the optional PCI Express SerDes Transmit LowSwing Voltage Mode
— Unused SerDes are disabled and can be powered-off
Environmental & Export Classifications of 89HPES10T4G2ZBBCG8
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
