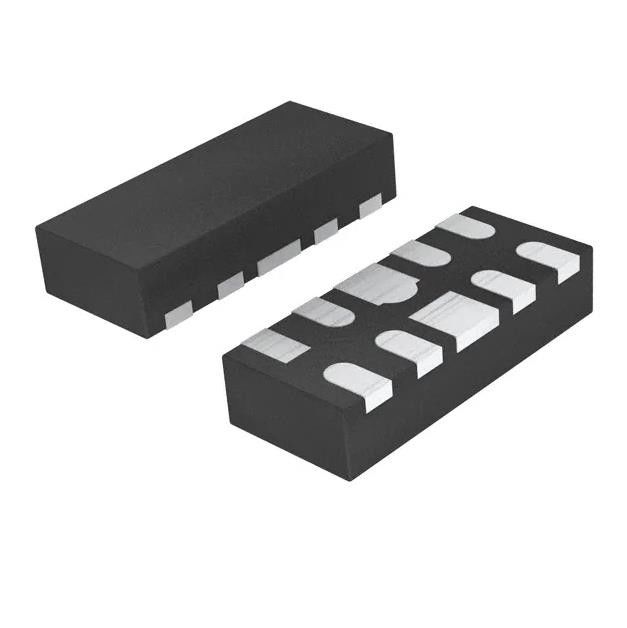

TPD4E02B04DQAR TVS DIODE 3.6VWM 8.8VC 10USON 5A 17W
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPD4E02B04DQAR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Zener | Bidirectional Channels: | 4 |
|---|---|---|---|
| Voltage - Reverse Standoff (Typ): | 3.6V (Max) | Voltage - Breakdown (Min): | 5.5V |
| Voltage - Clamping (Max) @ Ipp: | 8.8V (Typ) | Current - Peak Pulse (10/1000µs): | 5A (8/20µs) |
| Power - Peak Pulse: | 17W | Capacitance @ Frequency: | 0.27pF @ 1MHz |
| Highlight: | TPD4E02B04DQAR,5A TVS DIODE,17W TVS DIODE |
||
Product Description
TPD4E02B04DQAR TVS DIODE 3.6VWM 8.8VC 10USON 5A (8/20µs) Ipp
8.8V (Typ) Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount 10-USON (2.5x1)
Specifications of TPD4E02B04DQAR
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Zener |
| Bidirectional Channels | 4 |
| Voltage - Reverse Standoff (Typ) | 3.6V (Max) |
| Voltage - Breakdown (Min) | 5.5V |
| Voltage - Clamping (Max) @ Ipp | 8.8V (Typ) |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Power - Peak Pulse | 17W |
| Power Line Protection | No |
| Applications | HDMI |
| Capacitance @ Frequency | 0.27pF @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFDFN |
| Supplier Device Package | 10-USON (2.5x1) |
| Base Product Number | TPD4E02B04 |
Features of TPD4E02B04DQAR
• IEC 61000-4-2 Level 4 ESD Protection
– ±12-kV Contact Discharge
– ±15-kV Air Gap Discharge
• IEC 61000-4-4 EFT Protection
– 80 A (5/50 ns)
• IEC 61000-4-5 Surge Protection
– 2 A (8/20 µs)
• IO Capacitance:
– 0.25 pF (Typical)
– 0.33 pF (Maximum)
• DC Breakdown Voltage: 5.5 V (Minimum)
• Ultra Low Leakage Current: 10 nA (Maximum)
• Low ESD Clamping Voltage: 8.8 V at 5-A TLP
• Supports High Speed Interfaces up to 10 Gbps
• Industrial Temperature Range: –40°C to +125°C
• Easy Flow-Through Routing Package
Applications of TPD4E02B04DQAR
• End Equipment
– Laptops and Desktops
– Set-Top Boxes
– TV and Monitors
– Mobile and Tablets
– DVR and NVR
• Interfaces
– USB Type-C
– USB 3.1 Gen 2
– HDMI 2.0/1.4
– USB 3.0
– DisplayPort 1.3
– PCI Express 3.0
Environmental & Export Classifications of TPD4E02B04DQAR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
