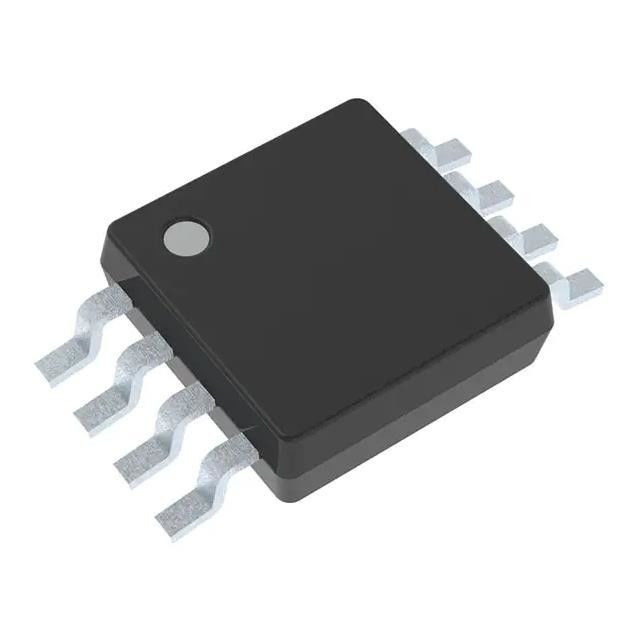

TCA9406DCUR Voltage Level Translator Circuit Chip 24Mbps 8-VSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TCA9406DCUR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Circuits: | 1 | Channels Per Circuit: | 2 |
|---|---|---|---|
| Voltage - VCCA: | 1.65 V ~ 3.6 V | Voltage - VCCB: | 2.3 V ~ 5.5 V |
| Output Type: | Open Drain | Data Rate: | 24Mbps |
| Operating Temperature: | -40°C ~ 85°C (TA) | Supplier Device Package: | 8-VSSOP |
Product Description
TCA9406DCUR Voltage Level Translator Circuit Chip 24Mbps 8-VSSOP
Voltage Level Translator Bidirectional 1 Circuit 2 Channel 24Mbps 8-VSSOP
Specifications of TCA9406DCUR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Translators, Level Shifters | |
| Mfr | Texas Instruments |
| Series | TCA |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Translator Type | Voltage Level |
| Channel Type | Bidirectional |
| Number of Circuits | 1 |
| Channels per Circuit | 2 |
| Voltage - VCCA | 1.65 V ~ 3.6 V |
| Voltage - VCCB | 2.3 V ~ 5.5 V |
| Input Signal | - |
| Output Signal | - |
| Output Type | Open Drain |
| Data Rate | 24Mbps |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Features | Auto-Direction Sensing |
| Mounting Type | Surface Mount |
| Package / Case | 8-VFSOP (0.091", 2.30mm Width) |
| Supplier Device Package | 8-VSSOP |
| Base Product Number | TCA9406 |
Features of TCA9406DCUR
• 2-Bit Bidirectional Translator for SDA and SCL Lines in I2C Applications
• Provides Bidirectional Voltage Translation With No Direction Pin
• High-Impedance Output SCL_A, SDA_A, SCL_B, SDA_B Pins When OE = Low or VCC = 0 V
• Internal 10-kΩ Pullup Resistor on All SDA and SCL Pins
• 1.65 V to 3.6 V on A port and 2.3 V to 5.5 V on B port (VCCA ≤ VCCB)
• VCC Isolation Feature: If Either VCC Input Is at GND, Both Ports Are in the High-Impedance State
• No Power-Supply Sequencing Required: Either VCCA or VCCB Can Be Ramped First
• Low Ioff of 2 µA When Either VCCA or VCCB = 0 V
• OE Input Can Be Tied Directly to VCCA Or Controlled By GPIO
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
– A Port
– 2500-V Human-Body Model (A114-B)
– 250-V Machine Model (A115-A)
– 1500-V Charged-Device Model (C101)
– B Port
– 8-kV Human-Body Model (A114-B)
– 250-V Machine Model (A115-A)
– 1500-V Charged-Device Model (C101)
Applications of TCA9406DCUR
• I2C/SMBus
• UART
• GPIO
Environmental & Export Classifications of TCA9406DCUR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
