F450R07W1H3B11ABOMA1IGBT Ic Chip 650V 55A 200W
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | F450R07W1H3B11ABOMA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Collector Emitter Breakdown (Max): | 650 V | Current - Collector (Ic) (Max): | 55 A |
|---|---|---|---|
| Power - Max: | 200 W | Vce(on) (Max) @ Vge, Ic: | 1.85V @ 15V, 25A |
| Current - Collector Cutoff (Max): | 50 µA | Input Capacitance (Cies) @ Vce: | 3.25 NF @ 25 V |
| Operating Temperature: | -40°C ~ 150°C (TJ) | IGBT Type: | Trench Field Stop |
| Highlight: | F450R07W1H3B11ABOMA1IGBT,650V 55A Ic Chip,55A 200W Ic Chip |
||
Product Description

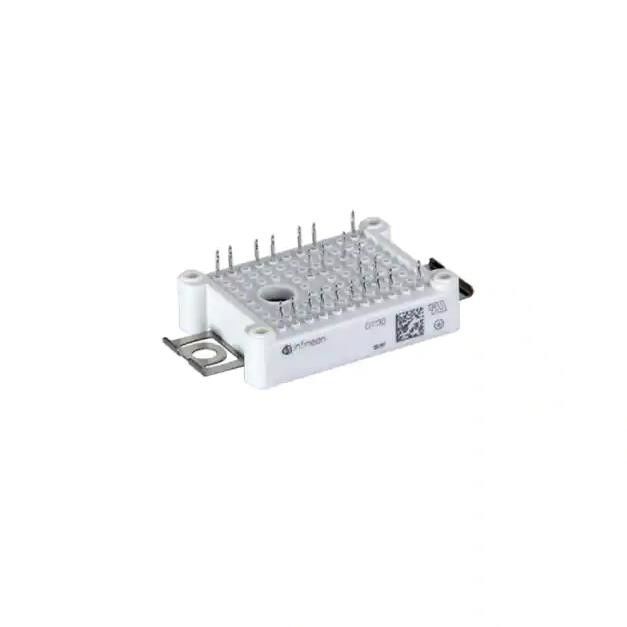

F450R07W1H3B11ABOMA1IGBT Integrated Circuit Chip 650 V 55 A 200 W
IGBT Module Trench Field Stop Full Bridge Inverter 650 V 55 A 200 W Chassis Mount Module
Specifications of F450R07W1H3B11ABOMA1
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| IGBTs | |
| IGBT Modules | |
| Mfr | Infineon Technologies |
| Series | EasyPACK™ |
| Package | Tray |
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Configuration | Full Bridge Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 55 A |
| Power - Max | 200 W |
| Vce(on) (Max) @ Vge, Ic | 1.85V @ 15V, 25A |
| Current - Collector Cutoff (Max) | 50 µA |
| Input Capacitance (Cies) @ Vce | 3.25 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | Module |
| Base Product Number | F450R07 |
Features of F450R07W1H3B11ABOMA1
• Increasedblockingvoltagecapabilityto650V
• HighSpeedIGBTH3
• Lowinductivedesign
• LowSwitchingLosses
• LowVCEsat
• 2.5kVAC1minInsulation
• HighCreepageandClearanceDistances
• PressFITContactTechnology
• RoHScompliant
• Rugged mounting due to integrated mounting clamps
Applications of F450R07W1H3B11ABOMA1
• AutomotiveApplications
• HighFrequencySwitchingApplication
• DC/DCconverter
• AuxiliaryInverters
• HybridElectricalVehicles(H)EV
• InductiveHeatingandWelding
Environmental & Export Classifications of F450R07W1H3B11ABOMA1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
