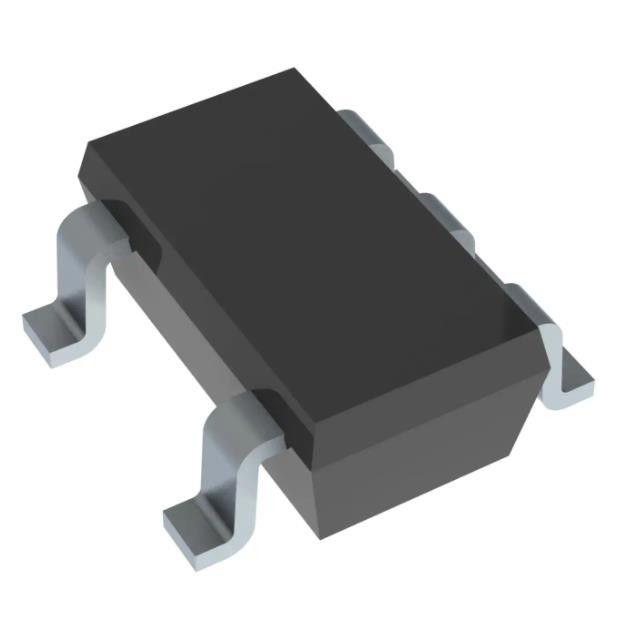

SN74LVC1G125DBV Integrated Circuit Chip IC BUF NON-INVERT 5.5V SOT23-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74LVC1G125DBV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Series: | 74LVC | Product Status: | Active |
|---|---|---|---|
| Mounting Type: | Surface Mount | Supplier Device Package: | SOT-23-5 |
| Package / Case: | SC-74A, SOT-753 | Voltages: | 5.5V |
Product Description
SN74LVC1G125DBV Integrated Circuit Chip IC BUF NON-INVERT 5.5V SOT23-5
IC Channel SOT-23-5
Specifications of SN74LVC1G125DBV
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Texas Instruments |
| Series | 74LVC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
| Package / Case | SC-74A, SOT-753 |
| Base Product Number | 74LVC1G125 |
Features of SN74LVC1G125DBV
• Available in the Ultra Small 0.64-mm2 Package (DPW) With 0.5-mm Pitch
• Supports 5-V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Provides Down Translation to VCC
• Max tpd of 3.7 ns at 3.3 V
• Low Power Consumption, 10-μA Max ICC
• ±24-mA Output Drive at 3.3 V
• Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)
• Supports 5-V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Provides Down Translation to VCC
• Max tpd of 3.7 ns at 3.3 V
• Low Power Consumption, 10-μA Max ICC
• ±24-mA Output Drive at 3.3 V
• Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)
Applications of SN74LVC1G125DBV
• Cable Modem Termination System
• High-Speed Data Acquisition and Generation
• Military: Radar and Sonar
• Motor Control: High-Voltage
• Power Line Communication Modem
• SSD: Internal or External
• Video Broadcasting and Infrastructure: Scalable Platform
• Video Broadcasting: IP-Based Multi-Format Transcoder
• Video Communications System
Environmental & Export Classifications of SN74LVC1G125DBV
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
