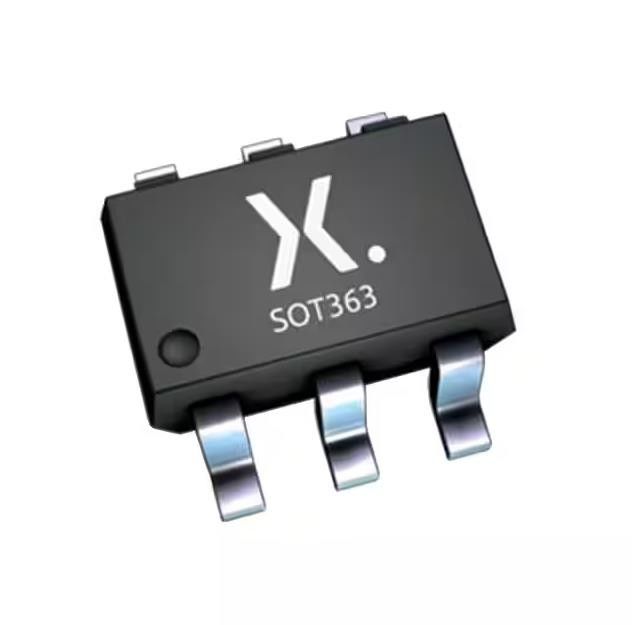

• 74LVC2G34GW-Q100 Integrated Circuit IC Chip BUF NON-INVERT 5.5V 6TSSOP
74LVC2G34GW-Q100 Integrated Circuit IC Chip BUF NON-INVERT 5.5V 6TSSOP

74LVC2G34GW-Q100 Integrated Circuit IC Chip BUF NON-INVERT 5.5V 6TSSOP

Product Details:

Place of Origin: original
Brand Name: original
Certification: original
Model Number: 74LVC2G34GW-Q100

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box
Delivery Time: 1-3working days
Payment Terms: T/T
Supply Ability: 100,000
Get Best Price Contact Now

Detail Information

Number Of Elements: 2 Number Of Bits Per Element: 1
Output Type: Push-Pull Current - Output High, Low Coefficient: 32mA, 32mA
Voltage - Supply: 1.65V ~ 5.5V Operating Temperature: -40°C ~ 125°C (TA)
Supplier Device Package: 6-TSSOP

Product Description

74LVC2G34GW-Q100 Integrated Circuit IC Chip BUF NON-INVERT 5.5V 6TSSOP



Buffer, Non-Inverting 2 Element 1 Bit per Element Push-Pull Output 6-TSSOP



Specifications of  74LVC2G34GW-Q100



TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Logic
Buffers, Drivers, Receivers, Transceivers
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q100, 74LVC
Package Tape & Reel (TR)
Cut Tape (CT)
Product Status Active
Logic Type Buffer, Non-Inverting
Number of Elements 2
Number of Bits per Element 1
Input Type -
Output Type Push-Pull
Current - Output High, Low 32mA, 32mA
Voltage - Supply 1.65V ~ 5.5V
Operating Temperature -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 6-TSSOP, SC-88, SOT-363
Supplier Device Package 6-TSSOP
Base Product Number 74LVC2G34



Features of 74LVC2G34GW-Q100


• Automotive product qualification in accordance with AEC-Q100 (Grade 1)
• Specified from -40 °C to +85 °C and -40 °C to +125 °C
• Wide supply voltage range from 1.65 V to 5.5 V
• Overvoltage tolerant inputs to 5.5 V
• High noise immunity
• ±24 mA output drive (VCC = 3.0 V)
• CMOS low power dissipation
• IOFF provides partial Power-down mode operation
• Direct interface with TTL levels
• Latch-up performance exceeds 250 mA
• Complies with JEDEC standard:
• JESD8-7 (1.65 V to 1.95 V)
• JESD8-5 (2.3 V to 2.7 V)
• JESD8C (2.7 V to 3.6 V)
• JESD36 (4.5 V to 5.5 V)
• ESD protection:
• MIL-STD-883, method 3015 exceeds 2000 V
• HBM JESD22-A114F exceeds 2000 V
• MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0 Ω)
• Multiple package options



General description of 74LVC2G34GW-Q100



The 74LVC2G34-Q100 is a dual buffer. Inputs can be driven from either 3.3 V or 5 V devices. This
feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments.
This product has been qualified to the Automotive Electronics Council (AEC) standard Q100
(Grade 1) and is suitable for use in automotive applications.



Environmental & Export Classifications of 74LVC2G34GW-Q100



ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
