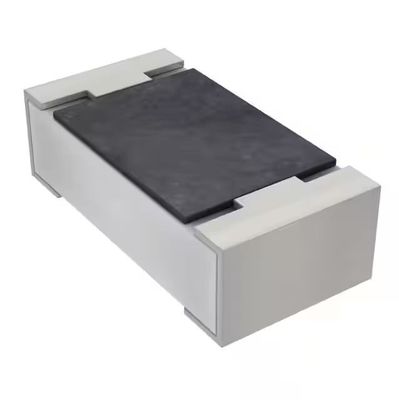

RL0603FR-070R047L Integrated Circuit Chip RES 0.047 OHM 1% 1/10W 0603
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | RL0603FR-070R047L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Resistance: | 47 MOhms | Tolerance: | ±1% |
|---|---|---|---|
| Power (Watts): | 0.1W, 1/10W | Temperature Coefficient: | ±1200ppm/°C |
| Operating Temperature: | -55°C ~ 155°C | Package / Case: | 0603 (1608 Metric) |
| Ratings: | AEC-Q200 | Height - Seated (Max): | 0.022" (0.55mm) |
Product Description
RL0603FR-070R047L Integrated Circuit Chip RES 0.047 OHM 1% 1/10W 0603
47 mOhms ±1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant Thick Film
Specifications of RL0603FR-070R047L
| TYPE | DESCRIPTION |
| Category | Resistors |
| Chip Resistor - Surface Mount | |
| Mfr | YAGEO |
| Series | RL |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Resistance | 47 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.1W, 1/10W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant |
| Temperature Coefficient | ±1200ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 603 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
Features of RL0603FR-070R047L
AEC-Q200 qualified
Halogen Free Epoxy
RoHS compliant
Hazardous wastes
High component and equipment reliability
Saving of PCB space
Non-forbidden materials used in products/production
Low resistances applied to current sensing
MSL Class: MSL 1
Halogen Free Epoxy
RoHS compliant
Hazardous wastes
High component and equipment reliability
Saving of PCB space
Non-forbidden materials used in products/production
Low resistances applied to current sensing
MSL Class: MSL 1
Applications of RL0603FR-070R047L
Converters
Printer equipment
Server board
Telecom
Consumer
Car electronics
SCOPE of RL0603FR-070R047L
This specification describes RL0402 to RL2512 low ohmic chip resistors with lead-free terminations made by thick film process.
Environmental & Export Classifications of RL0603FR-070R047L
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8533.21.0030 |
