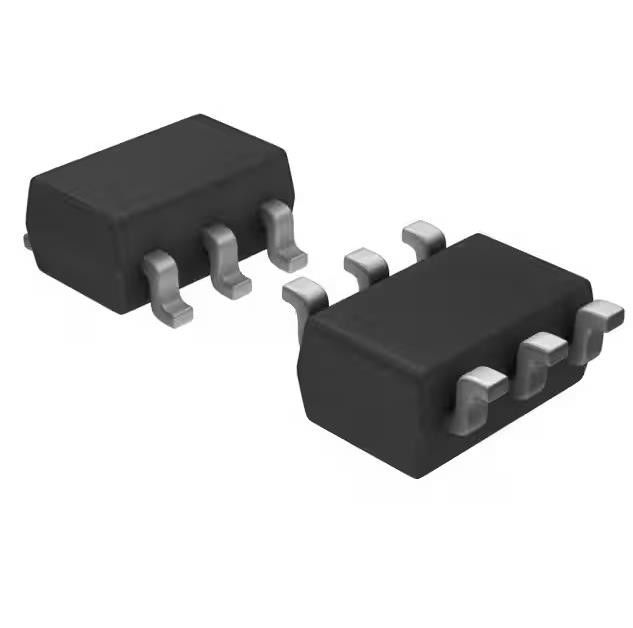

TPS79301DBVRG4Q1 Integrated Circuit Chip 1 Output 200mA SOT-23-6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS79301DBVRG4Q1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Regulators: | 1 | Voltage - Input (Max): | 5.5V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 1.22V | Voltage - Output (Max): | 5.5V |
| Current - Output: | 200mA | Current - Quiescent (Iq): | 220 µA |
| Operating Temperature: | -40°C ~ 125°C | Supplier Device Package: | SOT-23-6 |
Product Description
TPS79301DBVRG4Q1 Integrated Circuit Chip 1 Output 200mA SOT-23-6
Linear Voltage Regulator IC Positive Adjustable 1 Output 200mA SOT-23-6
Specifications of TPS79301DBVRG4Q1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.22V |
| Voltage - Output (Max) | 5.5V |
| Voltage Dropout (Max) | - |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 220 µA |
| PSRR | 70dB ~ 43dB (100Hz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| Base Product Number | TPS79301 |
Features of TPS79301DBVRG4Q1
• Qualified For Automotive Applications
• AEC-Q100 Qualified With the Following Results:
– Device Temperature Grade 1: –40°C to +125°C
– Device HBM ESD Classification Level 1C
– Device CDM ESD Classification Level C2
• 200-mA Low-Dropout Regulator With EN
• Available in 1.8-V, 2.5-V, 2.8-V, 3-V, 3.3-V, 4.75-V, and Adjustable Options
• High PSRR (70 dB at 10 kHz)
• Ultralow Noise (32 μV)
• Fast Start-Up Time (50 μs)
• Stable With a 2.2-μF Ceramic Capacitor
• Excellent Load and Line Transient
• Very Low Dropout Voltage (112 mV at Full Load, TPS79330-Q1)
• 5-Pin SOT-23 (DBV) Package
Applications of TPS79301DBVRG4Q1
• VCOs
• RF
• Bluetooth™
Environmental & Export Classifications of TPS79301DBVRG4Q1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
