SAF3560/V1102 Integrated Circuit Chip IC RF TxRx Only 144-LQFP Exposed Pad
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SAF3560/V1102 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Memory Size: | 512kB SDRAM | Serial Interfaces: | GPIO, I²C, I²S, JTAG, SPI, UART |
|---|---|---|---|
| Voltage - Supply: | 1.14V ~ 1.32V, 3V ~ 3.6V | Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount | Package / Case: | 144-LQFP Exposed Pad |
Product Description
SAF3560/V1102 Integrated Circuit Chip IC RF TxRx Only 144-LQFP Exposed Pad
IC DGTL RADIO PROCESSOR 144HLQFP
Specifications of SAF3560/V1102
| TYPE | DESCRIPTION |
| Category | RF and Wireless |
| RF Transceiver ICs | |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | TxRx Only |
| RF Family/Standard | - |
| Protocol | - |
| Modulation | - |
| Frequency | - |
| Data Rate (Max) | - |
| Power - Output | - |
| Sensitivity | - |
| Memory Size | 512kB SDRAM |
| Serial Interfaces | GPIO, I²C, I²S, JTAG, SPI, UART |
| Voltage - Supply | 1.14V ~ 1.32V, 3V ~ 3.6V |
| Current - Receiving | - |
| Current - Transmitting | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 144-LQFP Exposed Pad |

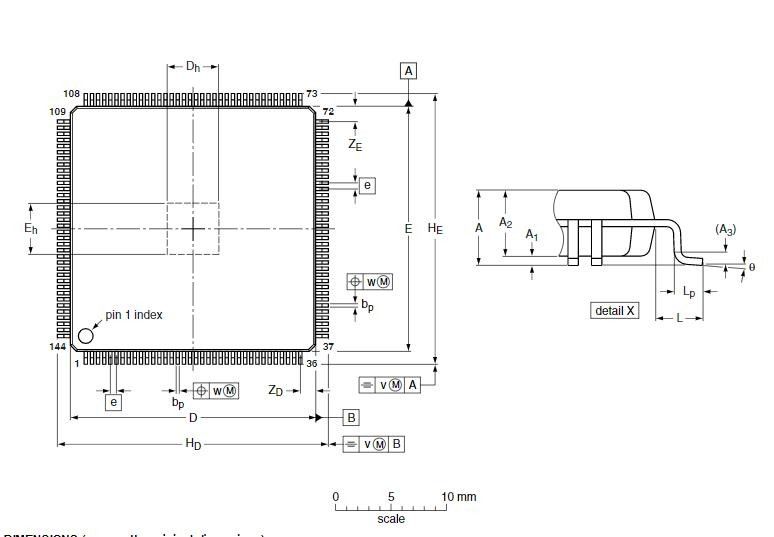

| Supplier Device Package | 144-HLQFP (20x20) |
Features of SAF3560/V1102
HD Radio technology
HD Radio signal decoding for AM and FM digital audio
Dual HD Radio support for support of 2nd station for background scanning and data service
Front-end to baseband interface support through serial baseband I2S-bus type interface
Secondary baseband interface for dual tuner applications
Metadata support for HD Radio reception
Data services support for HD Radio reception
Advanced HD Radio feature support, such as1:
Conditional Access (CA)
Store and replay
Apple ID3 tag
Multicasting
Electronic Program Guide (EPG)
HD Radio signal decoding for AM and FM digital audio
Dual HD Radio support for support of 2nd station for background scanning and data service
Front-end to baseband interface support through serial baseband I2S-bus type interface
Secondary baseband interface for dual tuner applications
Metadata support for HD Radio reception
Data services support for HD Radio reception
Advanced HD Radio feature support, such as1:
Conditional Access (CA)
Store and replay
Apple ID3 tag
Multicasting
Electronic Program Guide (EPG)
Miscellaneous
One internal clock oscillator and two internal Phase-Locked Loops (PLL)
Powerful signal and audio processing core architecture
Qualified in accordance with AEC-Q100
One internal clock oscillator and two internal Phase-Locked Loops (PLL)
Powerful signal and audio processing core architecture
Qualified in accordance with AEC-Q100
Environmental & Export Classifications of SAF3560/V1102
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | OBSOLETE |
