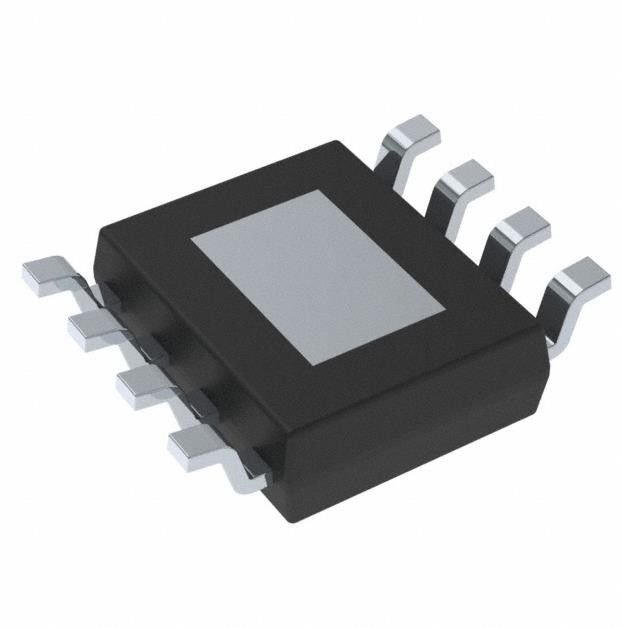

TPS7A7001DDAR Temperature Sensor Chip IC REG LIN POS ADJ 2A 8SO PWRPAD
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS7A7001DDAR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Regulators: | 1 | Voltage - Input (Max): | 6.5V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 0.9V | Voltage - Output (Max): | 5V |
| Voltage Dropout (Max): | 0.38V @ 2A | Current - Output: | 2A |
| Current - Quiescent (Iq): | 3 MA | Operating Temperature: | -40°C ~ 105°C |
Product Description
TPS7A7001DDAR Temperature Sensor Chip IC REG LIN POS ADJ 2A 8SO PWRPAD
Linear Voltage Regulator IC Positive Adjustable 1 Output 2A 8-SO PowerPad
Specifications of TPS7A7001DDAR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 0.9V |
| Voltage - Output (Max) | 5V |
| Voltage Dropout (Max) | 0.38V @ 2A |
| Current - Output | 2A |
| Current - Quiescent (Iq) | 3 mA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerSOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO PowerPad |
| Base Product Number | TPS7A7001 |
Features of TPS7A7001DDAR
• 380 mV Dropout Maximum at 2 A
• Adjustable Output from 0.5 V
• Protections: Current Limit and Thermal Shutdown
• Enable Pin
• 1-µA Quiescent Current in Shutdown Mode
• Full Industrial Temperature Range
• Available in SO-8, Fully RoHS-Compliant Package
Applications of TPS7A7001DDAR
• Telecom and Networking Cards
• Motherboards and Peripheral Cards
• Industrial
• Wireless Infrastructure
• Set-Top Boxes
• Medical Equipment
• Notebook Computers
• Battery-Powered Systems
Environmental & Export Classifications of TPS7A7001DDAR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
