CSD95372BQ5M HALF BRIDGE DRIVER IC 60A 12LSON
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CSD95372BQ5M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Interface: | PWM | Current - Output / Channel: | 60A |
|---|---|---|---|
| Current - Peak Output: | 90A | Voltage - Supply: | 4.5V ~ 5.5V |
| Voltage - Load: | 4.5V ~ 16V | Operating Temperature: | -55°C ~ 150°C (TJ) |
| Load Type: | Inductive | Technology Power: | MOSFET |
| Highlight: | CSD95372BQ5M,60A HALF BRIDGE DRIVER IC,12LSON HALF BRIDGE DRIVER |
||
Product Description

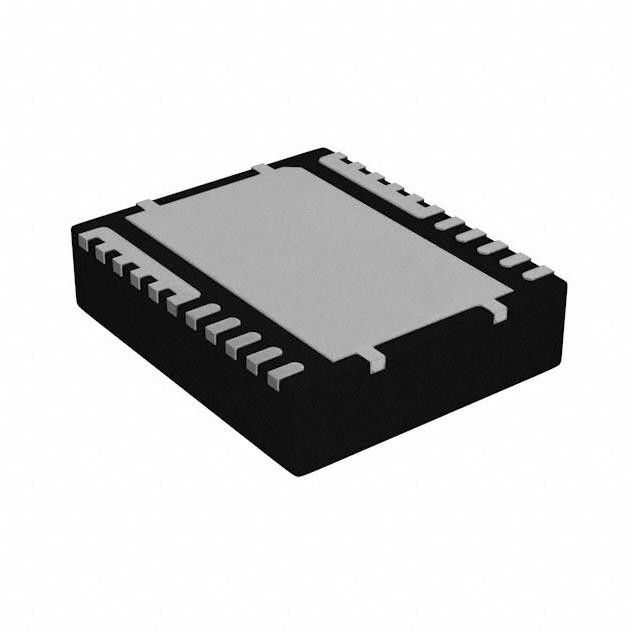

CSD95372BQ5M Temperature Sensor Chip IC HALF BRIDGE DRIVER 60A 12LSON
Half Bridge Driver Synchronous Buck Converters Power MOSFET 12-LSON-CLIP (5x6)
Specifications of CSD95372BQ5M
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Full Half-Bridge Drivers | |
| Mfr | Texas Instruments |
| Series | NexFET™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Output Configuration | Half Bridge |
| Applications | Synchronous Buck Converters |
| Interface | PWM |
| Load Type | Inductive |
| Technology | Power MOSFET |
| Rds On (Typ) | - |
| Current - Output / Channel | 60A |
| Current - Peak Output | 90A |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | 4.5V ~ 16V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit, Status Flag |
| Fault Protection | Current Limiting, Over Temperature, Shoot-Through, Short Circuit, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 12-PowerLFDFN |
| Supplier Device Package | 12-LSON-CLIP (5x6) |
| Base Product Number | CSD95372 |
Features of CSD95372BQ5M
• 60 A Continuous Operating Current Capability
• 93.4% System Efficiency at 30 A
• Low Power Loss of 2.8 W at 30 A
• High-Frequency Operation (up to 1.25 MHz)
• Diode Emulation Mode With FCCM
• Temperature Compensated Bi-Directional Current Sense
• Analog Temperature Output (600 mV at 0°C)
• Fault Monitoring
– High-Side Short, Overcurrent, and Overtemperature Protection
• 3.3 and 5-V PWM Signal Compatible
• Tri-State PWM Input
• Integrated Bootstrap Diode
• Optimized Deadtime for Shoot Through Protection
• High-Density SON 5 × 6 mm Footprint
• Ultra-Low Inductance Package
• System Optimized PCB Footprint
• RoHS Compliant – Lead-Free Terminal Plating
• Halogen Free
• 93.4% System Efficiency at 30 A
• Low Power Loss of 2.8 W at 30 A
• High-Frequency Operation (up to 1.25 MHz)
• Diode Emulation Mode With FCCM
• Temperature Compensated Bi-Directional Current Sense
• Analog Temperature Output (600 mV at 0°C)
• Fault Monitoring
– High-Side Short, Overcurrent, and Overtemperature Protection
• 3.3 and 5-V PWM Signal Compatible
• Tri-State PWM Input
• Integrated Bootstrap Diode
• Optimized Deadtime for Shoot Through Protection
• High-Density SON 5 × 6 mm Footprint
• Ultra-Low Inductance Package
• System Optimized PCB Footprint
• RoHS Compliant – Lead-Free Terminal Plating
• Halogen Free
Applications of TCSD95372BQ5M
• Multiphase Synchronous Buck Converters
– High-Frequency Applications
– High-Current, Low-Duty Cycle Applications
• POL DC-DC Converters
• Memory and Graphic Cards
• Desktop and Server VR11.x / VR12.x V-Core and Memory Synchronous Converters
Environmental & Export Classifications of CSD95372BQ5M
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
