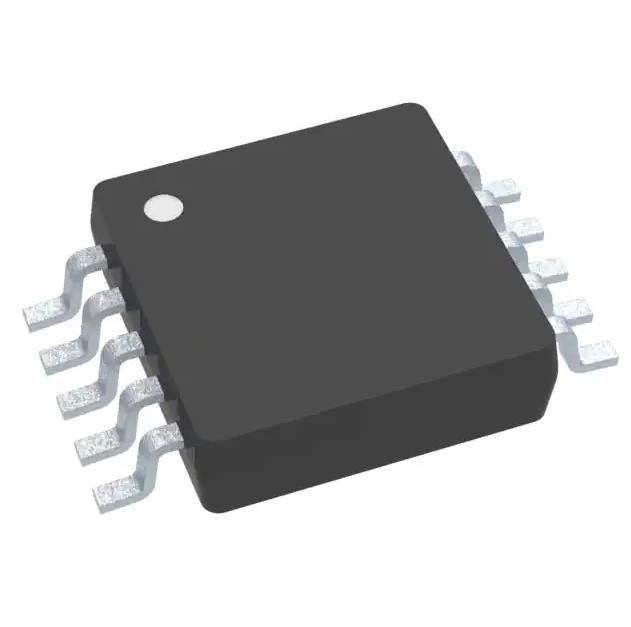

TPS2491DGSR Hot Swap Controller 1 Channel General Purpose 10-VSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS2491DGSR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Auto Retry | Number Of Channels: | 1 |
|---|---|---|---|
| Internal Switch(s): | No | Applications: | General Purpose |
| Voltage - Supply: | 9V ~ 80V | Operating Temperature: | -40°C ~ 85°C |
| Current - Supply: | 1 MA | Programmable Features: | Current Limit, Fault Timeout, UVLO |
Product Description
TPS2491DGSR Hot Swap Controller 1 Channel General Purpose 10-VSSOP
IC HOT SWAP CTRLR GP 10VSSOP
Specifications of TPS2491DGSR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Hot Swap Controllers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Hot Swap Controller |
| Number of Channels | 1 |
| Internal Switch(s) | No |
| Applications | General Purpose |
| Features | Auto Retry |
| Programmable Features | Current Limit, Fault Timeout, UVLO |
| Voltage - Supply | 9V ~ 80V |
| Current - Output (Max) | - |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 1 mA |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-VSSOP |
| Base Product Number | TPS2491 |
Features of TPS2491DGSR
• Programmable Power Limiting and Current Limiting for Complete Safe Operating Area (SOA) Protection
• Wide Operating Range: 9 V to 80 V
• Latched Operation (TPS2490) and Automatic Retry (TPS2491)
• High-Side Drive for Low-RDS(on) External Nchannel MOSFET
• Programmable Fault Timer to Protect the MOSFET and Eliminate Nuisance Shutdowns
• Power Good Open-Drain Output for Downstream DC/DC Coordination
• Enable Can Be Used as a Programmable Undervoltage Lockout or Logic Control
• Small, Space-Saving 10-pin VSSOP Package
• Calculator Tool Available (TPS2490/91 Design-in Calculator, SLVC033)
• Wide Operating Range: 9 V to 80 V
• Latched Operation (TPS2490) and Automatic Retry (TPS2491)
• High-Side Drive for Low-RDS(on) External Nchannel MOSFET
• Programmable Fault Timer to Protect the MOSFET and Eliminate Nuisance Shutdowns
• Power Good Open-Drain Output for Downstream DC/DC Coordination
• Enable Can Be Used as a Programmable Undervoltage Lockout or Logic Control
• Small, Space-Saving 10-pin VSSOP Package
• Calculator Tool Available (TPS2490/91 Design-in Calculator, SLVC033)
Applications of TPS2491DGSR
• Server Backplanes
• Storage Area Networks (SAN)
• Medical Systems
• Plug-In Modules
• Base Stations
Environmental & Export Classifications of TPS2491DGSR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
